If a drawing, specification, tender, system warranty or responsible engineer explicitly requires ASTM C920, use a sealant with the required C920 evidence or obtain written approval for an alternative. The project requirement controls.
If the project does not name C920, the buying question changes: choose a weather sealant by the joint it must protect, the movement it must absorb, the materials it must bond to and the tests that support that service.
Why Projects Specify ASTM C920
ASTM C920 is a specification for elastomeric joint sealants. A project names it when the team wants a defined sealant category, movement class, use designation and a document trail for submittal and installation.
| Project situation | Why the requirement matters |
|---|---|
| A drawing or sealant schedule names C920 | The submittal must match the named designation. |
| A tender lists Type, Grade, Class or Use | Bidders are compared against a common performance description. |
| A curtain-wall or window warranty cites C920 | The system provider is tying the sealant choice to its approved route. |
| A code, adopted standard or consultant specification calls for C920 | The project has a formal compliance requirement. |
| The owner or responsible engineer requires C920 | The document becomes a condition of acceptance. |
When C920 is named, read the exact designation: Type S or M, Grade P or NS, Class 12.5/25/35/50/100/50, and Use T/NT/I/M/G/A/O. ASTM C719 helps explain the movement, water and temperature conditioning behind this kind of classification. In our experience, “must have ASTM C920” is the right screen when the project has actually written it into the job.
Why Weather-Sealant Selection Is Strict
An exterior weather seal may not carry structural load, but it still has to block wind-driven rain and air, stay attached while the joint moves, hold its shape on a vertical or sloped face, and tolerate sunlight, water and temperature change.
| What the weather seal must do | What a weak selection can cause |
|---|---|
| Block water and air | Leaks, drafts, staining and call-backs |
| Absorb thermal and normal building movement | Cracked edges, cohesive failure or loss of contact |
| Stay in the designed joint geometry | Sagging, thin spots and an uneven weather barrier |
| Bond to the actual glass, aluminium, coating or panel | Early debonding that may remain hidden until water enters |
| Remain stable through water, UV and temperature exposure | Hardening, softening, shrinkage or a shorter maintenance cycle |
“Non-structural” describes the load role, not the importance of the joint. A small perimeter seal can control the water performance of a much larger facade, window or sunroom assembly, so it still deserves documented classification, relevant conditioning tests and a clear installation decision.
Does Every Weather Sealant Need ASTM C920?
No. C920 is a hard requirement when the project specification, contract, system warranty, code route or responsible authority makes it one. It is not a universal rule for every exterior weather seal in every country.
- Formal requirement: what does the project clause require?
- Product evidence: what do the classification, methods, specimens and conditioning show?
- Technical fit: does the product suit the movement, geometry, substrates and exposure?
- Project acceptance: who has authority to accept the submittal?
If the project names C920, submit the required C920 evidence or obtain written approval for an alternative. If it does not, the absence of a C920 label is not proof that a weather sealant is unusable; it means the review starts with the actual joint and the evidence the product does have.
How to Choose a Weather Sealant When C920 Is Not Required
Start with the service, not the label. Confirm the joint role, expected movement, actual substrates and finishes, exposure, product category, conditioning tests and the person who accepts the decision.
| Finding | Selection action |
|---|---|
| Role, movement, substrates and exposure match the product record | Approve it as a project candidate and complete the normal sample or field-quality check. |
| Product category fits but the finish is not represented | Request an actual-material adhesion or compatibility check. |
| Requirement, warranty or acceptance owner is unclear | Ask for written direction before substituting. |
| Joint is structural, IGU, fire-rated, permanently immersed or system-critical | Use the dedicated product and system route. |
No C920 does not mean no scrutiny. Weather sealing remains a critical water-management task; the evidence review simply begins with the joint and the product’s own documented standards and tests.
What Chinese Standards Tell You About Weather-Sealant Quality
Chinese building-sealant standards provide a structured product category and a set of performance checks that a manufacturer can use to make a defined non-structural weather-sealing recommendation. They are not a generic marketing badge: the classification, test method, specimen and conditioning stated in the record all matter.
The GB/T 14683-2017 record sets out the building-sealant classification. The GB/T 13477 method series and related JC/T methods provide the named performance checks used in a product record.
| Evidence layer | What it tells a buyer |
|---|---|
| GB/T 14683 product classification | The sealant’s building-use category, component form, movement class and modulus route |
| GB/T 13477.6 sag test | Whether the tested paste held its shape under the reported test conditions |
| GB/T 13477.8 modulus test | The recorded force level at a defined elongation and temperature |
| GB/T 13477.10, .11 and .13 / JC/T adhesion and conditioning | Whether recorded specimens retained adhesion after the named extension, water, temperature-cycle or water/UV exposure |
| GB/T 13477.17 elastic recovery | How much of the prescribed deformation the tested specimen recovered |
| GB/T 13477.19 mass loss and GB/T 31851 plasticizer screen | Additional evidence about material change and the specified plasticizer screen |
Read the standard as a product-and-application framework. A classification gives the buyer a meaningful quality and use threshold; the test record then shows which substrates and conditions are actually represented.
Where This GB/T Evidence Supports Non-Structural Weather Sealing
When a product is classified for non-structural curtain-wall assembly, carries a movement class suited to the joint and has relevant glass/aluminium adhesion and exposure records, a manufacturer can confidently recommend it for defined building-envelope work:
| Compatible application | Why the GB/T evidence matters |
|---|---|
| Exterior weather seals in glass curtain walls | The product category and movement route address the non-structural facade perimeter role. |
| Glass-to-aluminium frame weather seals | Recorded adhesion on the actual glass and aluminium specimen types gives the selection a direct material basis. |
| Joints between curtain-wall aluminium frames and components | Movement and non-sag evidence support a vertical, dynamic joint rather than a generic caulk use. |
| Panel-to-panel weather seals on metal or aluminium facades | Water, UV and temperature-cycle records address the exposure that drives the weather-seal duty. |
| Aluminium window and door perimeters | Elastic recovery, movement capacity and frame adhesion support an exposed perimeter joint. |
| Glass-to-aluminium joints in sunrooms and conservatories | The use is a non-structural building-envelope weather seal when the joint does not carry glass load. |
| Non-structural skylight perimeters | The product is selected for perimeter weather protection, not for transferring roof or glass loads. |
Special finishes still deserve a direct check. Powder-coated or PVDF-coated aluminium, painted metal, ACP coatings, natural stone, concrete, membranes and unusual plastics can change adhesion even when the joint role is familiar.
Why Vesta Recommends WR550 for This Route
Vesta WR550 is our product example for the GB/T route described above. Its current product record is GB/T 14683-2017 SR-I-Gw-35HM:
| Code | What it says about WR550 |
|---|---|
| SR | Silicone building sealant |
| I | One-component product |
| Gw | Non-structural assembly in building curtain walls |
| 35 | Class 35 movement route under GB/T 14683 |
| HM | High-modulus grade |
That classification gives WR550 a clear place in the ordinary non-structural weather-seal decisions described below. The direct application recommendations come after the substrate check, so you can separate a routine fit from a finish that needs a product-specific test.
The parameters matter because they explain the installation benefit:
| WR550 record | Why Vesta uses it in the recommendation |
|---|---|
| Gw classification | Places the product in the non-structural curtain-wall weather-sealing category. |
| Class 35 / declared ±35% movement capability | Gives a defined movement basis for dynamic exterior joints. |
| 0 mm sag under GB/T 13477.6-2002 | Supports neat, stable application on vertical facade and frame joints. |
| 93% elastic recovery under GB/T 13477.17-2017 | Supports repeated opening and closing movement in an exposed seal. |
| 0.6 MPa modulus at 100% elongation and 23°C under GB/T 13477.8-2017 | Explains the high-modulus positioning used in the joint review. |
| No failure in the recorded conditioned adhesion tests | Supports the listed water, temperature-cycle and water/UV weather-sealing duties on the recorded specimens. |
| Float-glass and anodized-aluminium specimens | Gives the recommendation a direct evidence match for common glass/aluminium envelope details. |
| 3.1% mass loss and alkane plasticizer not detected under the specified methods | Adds controlled material-change information to the product file. |
The current report records the cold draw-hot press result as GB/T 13477.13-2002; the official registry lists GB/T 13477.13-2019 as current. Submit the report as written and identify the edition in the project file.
Applications That Need Substrate Verification
WR550 is recommended for the listed non-structural weather-sealing roles when the substrates match the record. Powder-coated or PVDF-coated aluminium, painted metal, ACP coatings, natural stone, concrete, membranes and unusual plastics need a product-specific adhesion or compatibility check before specification. Send the actual finish, product name and a sample or section detail; Vesta will identify the check required.
Recommended Applications for WR550
For the routine building-envelope roles covered by its current classification and test record, Vesta recommends WR550 Weather-Resistant Silicone for these non-structural weather-sealing applications:
| Application | Vesta recommendation | Why WR550 fits |
|---|---|---|
| Exterior perimeter weather seals in glass curtain walls | Recommended. | Its Gw classification and movement route match the curtain-wall weather-seal role. |
| Glass-to-anodized-aluminium frame joints | Recommended. | Float-glass and anodized-aluminium specimens give this common envelope detail a direct evidence match. |
| Aluminium window and door perimeters | Recommended. | Movement, non-sag and elastic-recovery records support exposed frame perimeter joints. |
| Sunroom and conservatory glass-to-aluminium perimeters | Recommended. | These are ordinary non-structural weather seals when the joint is not carrying glass load. |
| Non-structural skylight perimeter seals | Recommended. | WR550 is used for perimeter weather protection, not for transferring roof or glass loads. |
| Compatible aluminium or metal facade panel joints | Recommended after finish confirmation. | The building-sealant classification and exposure records fit the weather-seal duty; coated or unusual finishes still need an actual-material check. |
These recommendations cover the weather-seal role itself. Where a joint carries load, forms part of a fire or IGU system, or stays permanently immersed, use the specialist route in the next section.
Where WR550 Is Not the Right Product
WR550 is a weather-sealing silicone. Route these duties to the specialist product or system directly:
| Application | Vesta judgement |
|---|---|
| Structural glazing | Use a structural glazing silicone. The joint transfers glass load to a frame. |
| Insulating-glass secondary edge sealing | Use an IGU sealant. |
| Fire-rated joints or assemblies | Use a tested fire-rated system. |
| Permanent immersion | Use a product with specific immersion evidence. |
| Load-bearing bonding or other system-critical work | Use the dedicated product and project approval route. |
Make the Project Decision

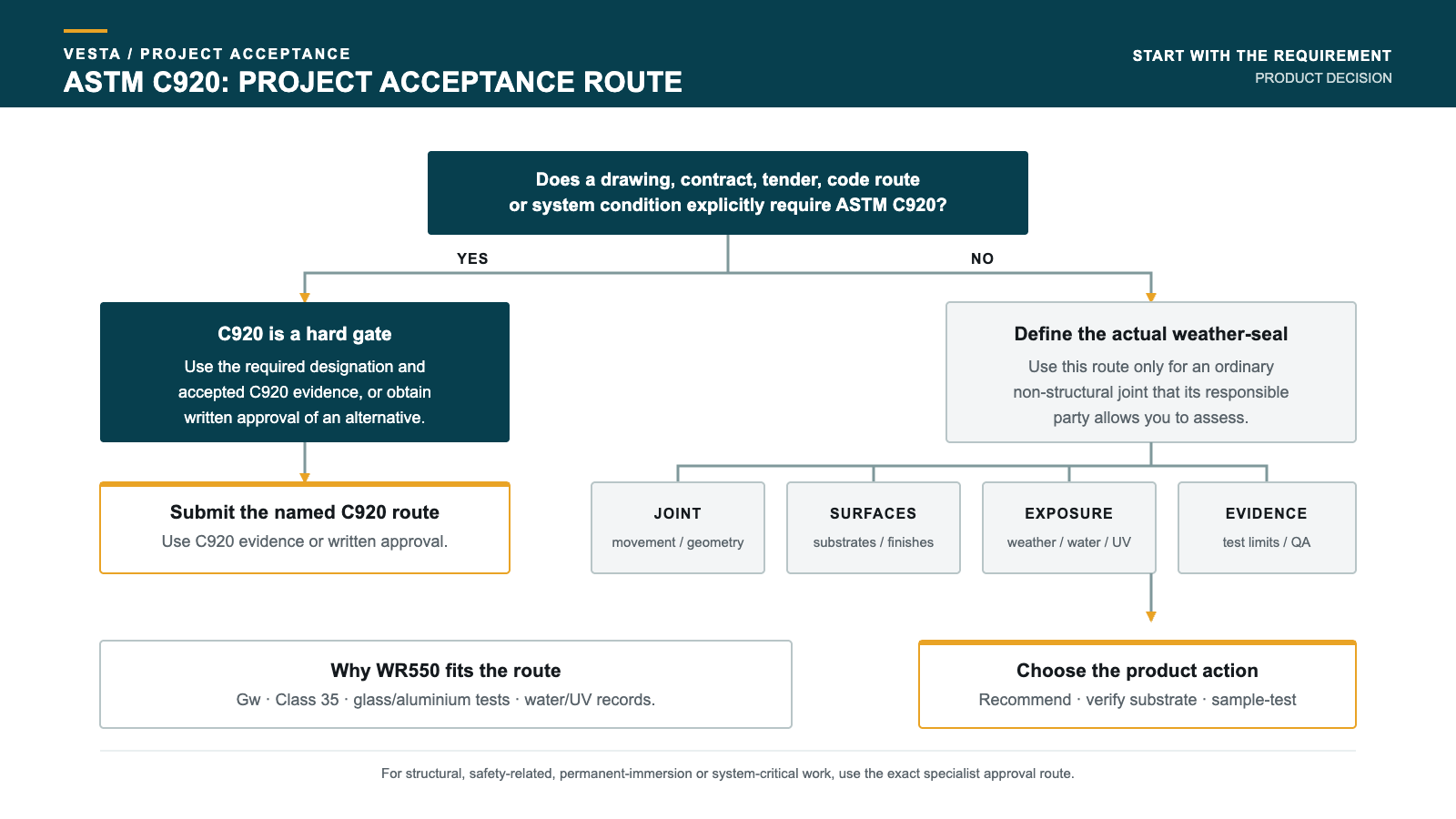

Use this final decision tool after reading the project clause and the product evidence:
| Project condition | Vesta recommendation | Next action |
|---|---|---|
| ASTM C920 is written into the project | Follow the named C920 Type, Grade, Class and Use route. | Submit the required evidence or obtain written approval for an alternative. |
| C920 is not named and the joint is an ordinary non-structural weather seal | Select by joint role, movement, substrates, exposure and product-level test evidence. | Compare the documented GB/T profile with the actual detail; a product such as WR550 can be a project candidate when the evidence matches. |
| The standard, warranty or acceptance owner is unclear | Do not guess who can approve the substitution. | Request written direction from the owner, specifier, system provider or responsible engineer. |
| The work is structural, fire-rated, permanently immersed or system-critical | Do not use the ordinary weather-seal route. | Choose the dedicated product/system and follow its approval process. |
For a non-structural curtain-wall question, use the Curtain Wall application guide to keep perimeter weather sealing separate from structural glazing, then send Vesta the actual detail.
FAQ
What is ASTM C920 used for?
It gives a project a defined way to specify elastomeric joint-sealant type, grade, movement class and use category, together with a document trail for submittal and acceptance.
Is ASTM C920 required for every exterior weather seal?
No. It is required when the project specification, contract, warranty, code route or responsible authority makes it required. Without that clause, choose by the actual joint and controlled product evidence.
Why can a project be strict about a non-structural weather seal?
Because the seal still controls water and air at the building envelope and must survive movement, adhesion and exposure. “Non-structural” describes the load role; it does not mean the joint is unimportant.
What should I check when C920 is not named?
Check the joint role, movement, substrates and finishes, exposure, non-sag behaviour, adhesion after conditioning, water/UV or temperature-cycle records, cure and the person who accepts the submittal.
Does GB/T Class 35 mean the same thing as ASTM C920 Class 35?
No—the two Class 35 labels are not interchangeable. A GB/T Class 35 result shows that the sealant has met the Class 35 movement requirements under the GB/T classification route. It should not be relabelled as ASTM C920 Class 35, but where C920 is not a project requirement, it remains useful evidence for selecting a sealant for compatible movement joints and non-structural weather-sealing applications.
When can WR550 be used instead of an ASTM C920 sealant?
When ASTM C920 is not a mandatory project requirement, WR550 can be selected for compatible non-structural weather-sealing applications based on its own GB/T 14683 classification and controlled product evidence.
If ASTM C920 conformity is explicitly specified, WR550’s GB/T record does not automatically replace that requirement. In that case, use a product with the required C920 evidence or obtain written approval for WR550 as an alternative.
Can WR550 be used around aluminium windows, doors, sunrooms and skylights?
Yes. Vesta recommends WR550 for compatible non-structural perimeter weather seals in those applications. Verify powder-coated, PVDF-coated, painted or unusual finishes on the actual material before specification.
Can WR550 be used for structural glazing?
No. WR550 is a weather-sealing silicone. Use a structural glazing silicone for any joint that transfers glass load or forms part of a structural glazing system.
What to Send Our Application Support Team
Send your target country, project clause or specification, joint role, substrates and finishes, joint dimensions and calculated movement, interior or exterior exposure, required classification or documents, and any sample or test need. Vesta will use those inputs to recommend the right product, confirm which WR550 evidence applies, and identify any actual-material adhesion or compatibility check before specification.
