RTV silicone is silicone formulated to cure at room temperature. The initials are commonly expanded as room-temperature vulcanizing. That tells you the cure family, not the job the product is meant to do.
In automotive and maintenance conversations, however, “RTV” often means a heat-resistant silicone gasket maker used around engines and metal flanges. That familiar product is an important part of the RTV family, but it is not the whole family. Construction cartridge sealants, flexible adhesive/sealants, moldmaking rubbers and potting compounds may also use room-temperature-curing silicone chemistry.
For a buyer, “RTV” is the start of the specification, not the specification itself. In our inquiries, one buyer may mean the broad room-temperature-curing family while another means a familiar cartridge sealant or gasket maker. Both can say “RTV” while asking for materially different products. Start with the job, then check the surfaces, service conditions and process before discussing a grade.
What RTV silicone means—and what it does not
RTV describes a curing family within silicone. In automotive and maintenance work, it is common shorthand for a high-temperature gasket maker. It does not describe one formula, application or quality level, and it does not by itself establish temperature resistance, fluid compatibility, adhesion, working pressure or cure speed.
Three labels are often compressed into one phrase:
- Silicone identifies the material family.
- RTV identifies a room-temperature-curing family.
- Sealant, gasket maker, adhesive, mold rubber or potting compound identifies the intended task.
Those labels can overlap without becoming synonyms. A heat-resistant gasket maker may be RTV silicone. A one-part construction cartridge or a mixed moldmaking rubber may also be RTV silicone. Their application methods, cure controls and service requirements are not interchangeable.
So “RTV” can mean two things in the same conversation: the broad room-temperature-curing silicone family, or the familiar high-temperature gasket-maker product. The exact technical data sheet (TDS), product instructions and assembly requirements tell you which one you actually have.
Which RTV product task does the buyer mean?
The first question is simple: what does the buyer need the product to do?
| Product task | What the material must do | First questions to ask |
|---|---|---|
| High-temperature gasket maker | Form a sealing path between mating engine or equipment parts under a specified assembly procedure | Which cover or flange, existing gasket design, gap, fluid, temperature, pressure, vibration and return-to-service requirement apply? |
| Construction or general-purpose sealant | Seal a designed building or fixture joint while accommodating the required movement and exposure | What are the substrates, finish, joint geometry, movement, weather or water exposure, and cure conditions? |
| Flexible adhesive/sealant | Wet the surfaces and retain an assembly within a defined, non-structural or engineered load role | What are the materials, bond geometry, initial fixture, cured load and environment? |
| Moldmaking silicone | Reproduce detail and release a casting after a controlled mix and cure | What are the mix ratio, working time, inhibition risks, demold target and casting media? |
| Potting or encapsulation silicone | Flow around components and cure with the required electrical, thermal and stress behavior | What are the flow, void, component-compatibility, heat-transfer and rework requirements? |

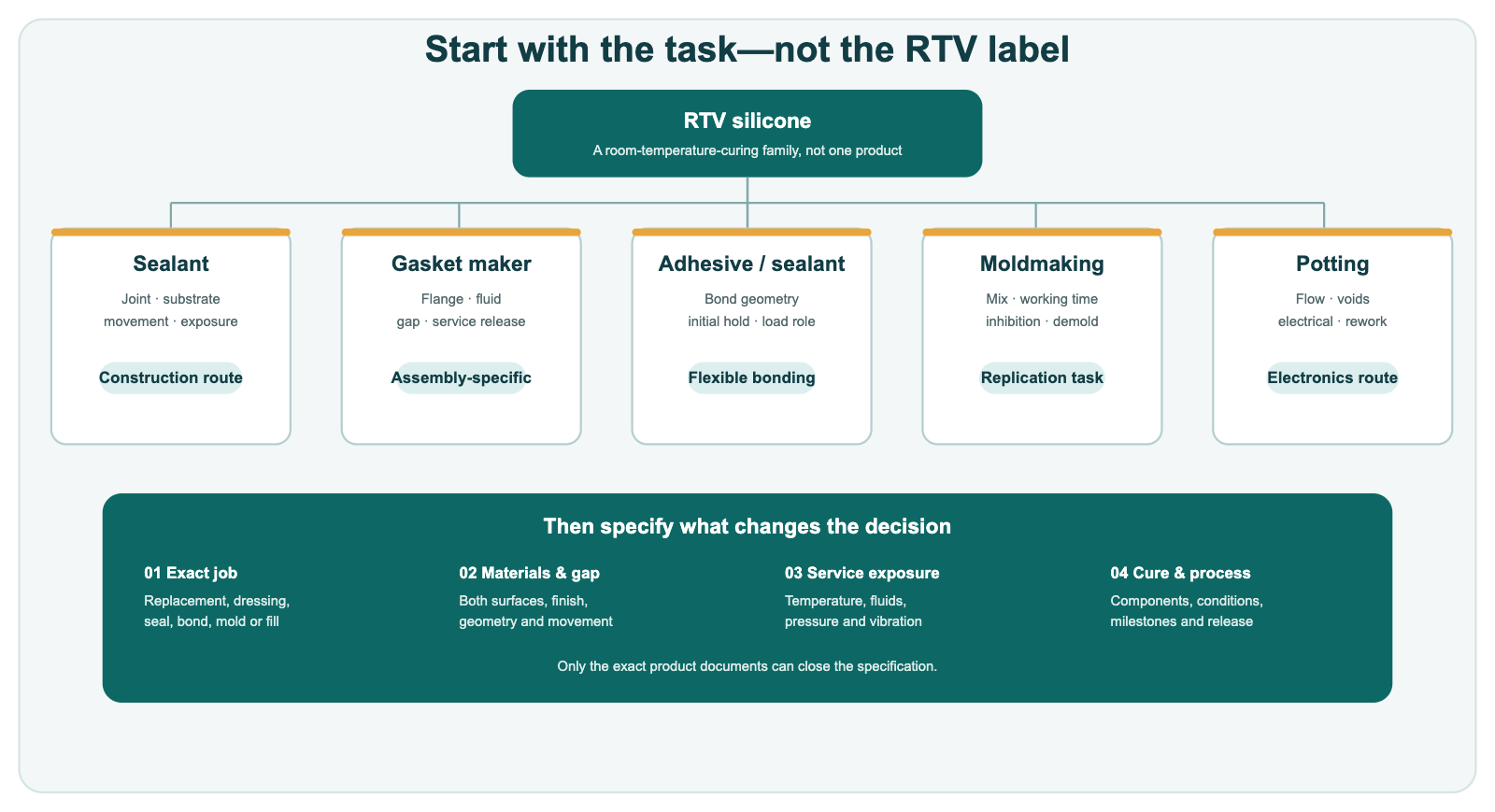

Use the table to name the job, not to select a product. One formulation may be documented for more than one use. Shared chemistry, color or package size still does not make another formulation equivalent.
The high-temperature gasket-maker route is the familiar meaning in many automotive and maintenance inquiries. The construction route is different: for example, Vesta's kitchen, bath, countertop and sink application guide covers joints around fixtures and building materials, not engine assemblies.
RTV-1 and RTV-2: process families, not quality grades
Manufacturers commonly use RTV-1 for ready-to-apply, one-component systems that cure through a room-temperature reaction such as moisture cure. Moisture access, temperature, humidity, bead geometry and depth can then affect cure progression. A surface skin or tack-free result does not prove full cure through the joint.
RTV-2 commonly describes matched components mixed before cure. The exact system may require a specified ratio by weight or volume, homogeneous mixing, working-time control and attention to inhibition or contamination. Mixing starts the cure path, but it does not remove the need to follow the product's conditions and timing.
| Buyer question | RTV-1 route | RTV-2 route |
|---|---|---|
| Supply | Ready to apply from the specified pack | Matched base and curing component |
| Main process control | Storage, surface preparation, moisture access, bead and cure environment | Component identity, ratio basis, mix quality, working time and cure conditions |
| Depth question | Can the specified cure path reach the full geometry? | Can the mixed material fill and cure through the intended volume under the stated process? |
| Quality conclusion | Component count does not prove a better product | Component count does not prove a better product |
These are common categories, not universal definitions for every silicone portfolio. Some systems use heat or another activation method, and mixed systems differ in chemistry and process. Structural-glazing one-part-versus-two-part selection is a separate production decision covered in the dedicated structural article.
What an RTV gasket maker does
An RTV gasket maker is applied as a bead to mating surfaces and cures into a flexible sealing path. It is commonly considered where an engine or equipment assembly has bolted covers or rigid flanges, especially when the joint needs to accommodate small surface irregularities, heat cycling and vibration.

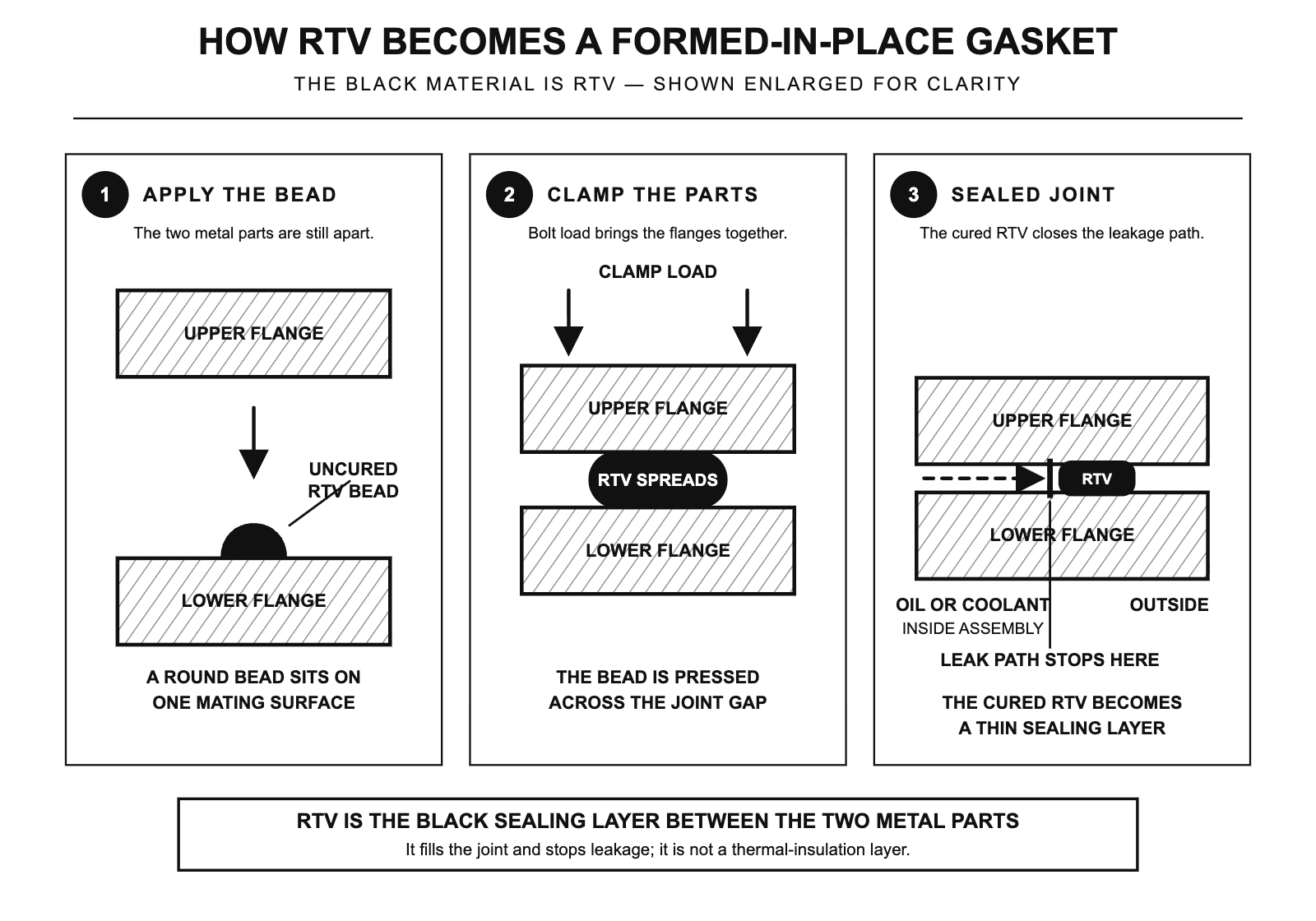

The three-step cross-section below shows how the seal forms. A bead of uncured RTV is applied to one flange, then bolt load brings the parts together and spreads the bead across the mating gap. As it cures, the RTV follows small surface irregularities and creates a continuous barrier across the leakage path. If the selected grade is suitable for the service temperature, the cured seal can stay flexible through small movements caused by heating and cooling. Its job is sealing, not thermal insulation; heat still travels through the surrounding metal assembly.

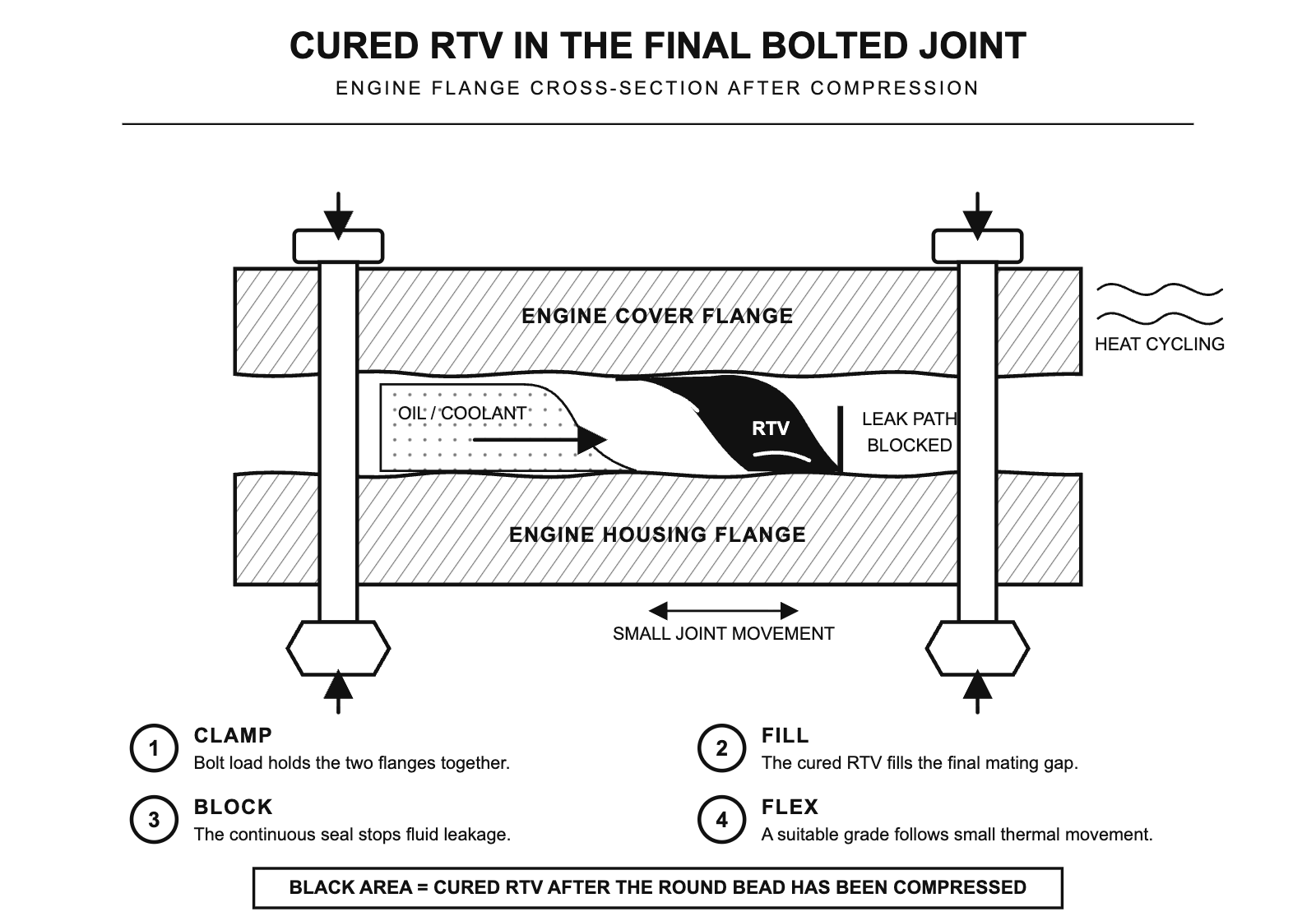

The process view makes the shape change easy to follow. The engineering line drawing below shows the final bolted joint in more detail. Its black area is the same RTV after compression and cure, not a separate sheet gasket.
Common documented applications include:
| Common application | What is being sealed | Why an RTV gasket maker may be considered | What to confirm |
|---|---|---|---|
| Valve covers | The joint between the valve cover and cylinder-head surface | A continuous bead can follow a long, shaped perimeter and tolerate normal vibration and thermal cycling | Cover material, existing gasket design, bead path, oil exposure and tightening sequence |
| Oil pans | The pan-to-engine or pan-to-transmission flange | Formed-in-place material can follow irregular flange shapes without stocking a separate cut profile | Oil compatibility, flange gap and rigidity, bead size, cure time and return-to-service instructions |
| Timing covers | The perimeter and transition joints around the timing-cover assembly | RTV can seal complex mating lines and junctions when the exact grade and service procedure allow it | Substrates, joint transitions, oil exposure, assembly window and specified sealant locations |
| Thermostat and water-pump housings | Static housing-to-engine mating faces | Selected grades are used at coolant-side static joints and shaped housings | Exact coolant, temperature, pressure, surface preparation and whether a separate gasket is required |
| Transmission pans and differential covers | Removable covers around lubricated driveline housings | A formed bead can seal a large perimeter and support later cover removal when the approved procedure is followed | Gear-fluid compatibility, flange condition, bead path, torque sequence and service-release time |

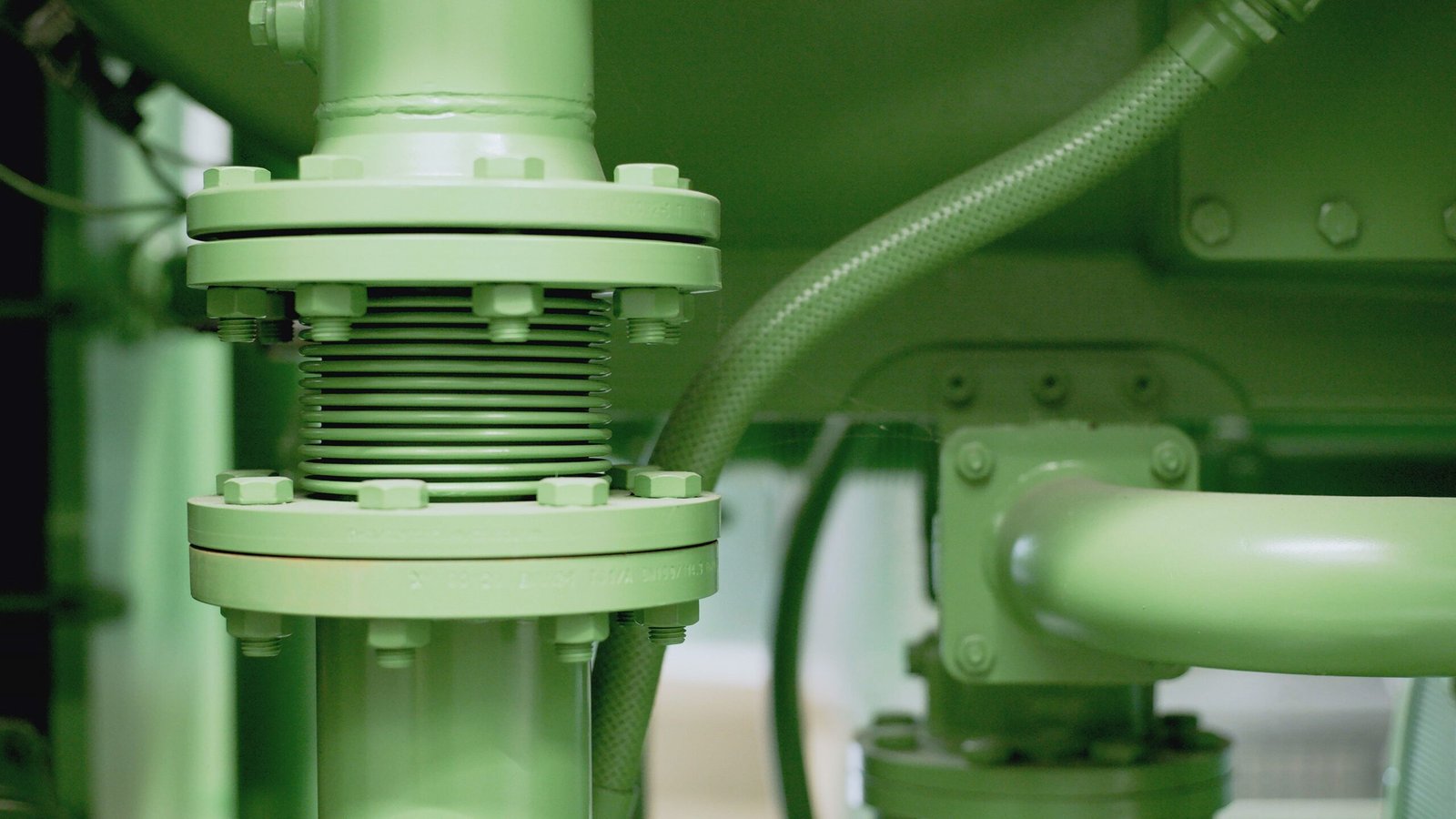

| Gearbox housings and industrial flanges | Static mating faces on machinery and housings | Selected industrial grades can form a continuous seal across machined or cast flange geometry | Equipment instructions, media, pressure, temperature, flange movement and disassembly plan |
In these applications, the material is dispensed on the mating flange surfaces to form a continuous seal. Selected grades can accommodate flange irregularities, heat cycling and vibration while avoiding a separately stocked pre-cut gasket shape. The equipment procedure and exact gasket-maker grade still control the job.
The assembly method also matters:
- Formed-in-place gasketing (FIPG): material is dispensed into the assembly's sealing path and mated under the specified sequence.
- Cured-in-place gasketing (CIPG): the applied seal is cured before mating or compression.
- Gasket dressing: material is used with an existing formed or sheet gasket when the relevant instructions permit it.
- Pre-cut gasket replacement: the liquid material becomes the specified gasket. This is a separate approval, not an automatic meaning of “gasket maker.”
Instructions can differ on using RTV with an existing gasket. One grade may be specified as the gasket itself; another may be permitted only as dressing with a solid gasket. Follow the equipment and product instructions for the actual assembly.
Do not treat tube RTV as a head-gasket replacement. Fuel contact, exhaust use, sensor compatibility, working pressure, bead size and return-to-service time also remain exact-grade and exact-assembly questions.
Choose by the assembly—not by color
Color can help identify the intended brand and grade after the specification is known. It is not a universal code. Red, black, blue and grey products can carry different claims across manufacturers, and the same color does not establish equivalent chemistry or performance.
Use this checklist when you compare a grade with the assembly:
- Start with the operation. Record the equipment and model, mating parts, existing gasket, and whether the job is replacement, dressing, FIPG or CIPG. Obtain the assembly or service instructions.
- What is the joint geometry? Name both materials and finishes, flange rigidity, bolt pattern, surface condition, gap and bead path. Separate a static flange from a moving shaft, piston or sliding seal.
- Check the exposure. State continuous temperature and peak temperature with duration and frequency. Name the exact oil, coolant, gear oil, fuel or other fluid, its contact mode, pressure and vibration.
- Look for sensitive conditions. Identify corrosion-sensitive materials, sensors or electronics, adjacent gaskets, cleaners, primers and regulated-use requirements.
- Set the process. Provide assembly window, torque or retorque instructions, available temperature and humidity, cure milestones and required return-to-service point.
- Read the documents side by side. Check the exact product, market, revision, test conditions and exclusions before approving a substitution.
- Then settle supply details. Confirm pack, dispenser, quantity, shelf life on receipt, storage, traceability and future disassembly needs.
A “high temperature” headline still needs a test and exposure basis. Continuous service and short intermittent peaks are different. A pressure-test table still needs the specimen, clearance, cure age and test temperature before anyone treats the number as relevant to an assembly.
The same discipline applies to cure language. Working time, skin time, tack-free time, through-cure, full cure and return to service are different milestones. A product advertised for rapid return to service has not necessarily reached full chemical cure at that moment.
What the TDS and supplier inquiry must confirm
A useful inquiry gives the supplier enough information to discuss the right product family without guessing. The equipment owner still makes the assembly approval.
| Record block | Minimum input | Completion check |
|---|---|---|
| Exact identity | Manufacturer, trade name, SKU, components, market and TDS revision | Pack and current document match |
| Product route | Sealant, FIPG, dressing, adhesive, moldmaking, potting or other | Supplier confirms the intended task |
| Materials and preparation | Both surfaces, finishes, coatings, cleaners and primers | Exact compatibility evidence or a defined test |
| Geometry | Gap, bead width/depth/path, joint length, flange condition and movement | Actual drawing or measured dimensions |
| Service | Continuous/peak temperature, fluids, pressure and vibration | Relevant test conditions and explicit limits |
| Cure and assembly | Working, skin/tack-free, through-cure, full-cure and service-release requirements | Conditions and milestone definitions are clear |
| Supply | Pack, dispenser, quantity, target market, storage and shelf life | Written commercial confirmation |
| Documents and responsibility | TDS, SDS, reports, declarations and approval roles | Typical data, specification limits and assembly approval stay separate |
The TDS is a controlled product reference, not automatic approval for a customer's assembly. Our silicone TDS guide explains how to distinguish typical values, methods, limits and project evidence.
Why construction RTV is a different buying task
Vesta EX230 is a useful example of RTV's broader technical meaning. Vesta EX230’s current Rev. 03 TDS describes a one-component acetoxy RTV for construction and general-purpose applications, including granite-countertop installation, compatible stainless-steel undermount-sink rims, and selected compatible glass and glazed-ceramic assemblies.
So EX230 acetoxy RTV silicone is RTV by cure family. It is not the high-temperature gasket maker normally meant in automotive and maintenance shorthand, and this article is not recommending it for engine use. The two products share an RTV classification while serving different buying tasks.
Short answers to remaining RTV questions
Does RTV mean high temperature?
In automotive and maintenance shorthand, it often refers to a heat-resistant gasket maker. In technical classification, RTV only identifies room-temperature cure; the service-temperature capability still belongs to the exact grade and its stated exposure conditions.
What do RTV colors mean?
They can help identify a brand and grade. They are not a cross-brand performance standard, so choose the specification before the color.
How long does RTV take to cure?
There is no one family-wide number. First identify whether a document means working time, skin time, tack-free time, through-cure, full cure or return to service, then check the stated temperature, humidity and geometry. For construction-sealant troubleshooting, use the separate silicone cure-time guide.
What will RTV silicone not stick to?
There is no reliable universal blacklist. Adhesion depends on the exact formulation, substrate, finish, contamination, preparation, primer and service environment. Check the proposed product on the actual material rather than transferring a claim from another RTV grade.
