How long does silicone caulk take to dry? A silicone bead can form a dry-feeling surface in minutes or hours while the center continues curing for days. The useful answer depends on the exact product, temperature and relative humidity, bead depth, exposed faces and what the joint must face next.
There is no dependable universal 24-hour rule. A surface skin, tack-free condition, through cure and permission for water exposure are separate milestones.
Quick rule: Match the next exposure to the product instruction, not to how the surface feels.
If the cartridge is described only as “caulk,” first confirm that it is silicone. The silicone vs acrylic sealant guide separates those material routes, while the 100% silicone label guide explains why a front-label phrase is not a complete cure schedule.
What “Dry” Means for Silicone Caulk
For the one-part moisture-curing construction silicones covered here, curing begins at the exposed surface and progresses inward through moisture-initiated crosslinking. The formulation and product instructions still control the schedule.
Several terms may appear on a label or Technical Data Sheet. They answer different questions.
| Milestone or term | What it can tell you | What it does not tell you |
|---|---|---|
| Tooling or work life | The interval available to shape the fresh bead under the stated conditions | Full cure, water exposure or return to service |
| Skin formation | An early surface film has formed | Through cure, final adhesion or a water-ready decision |
| Tack-free | The surface no longer transfers or pulls under the named test | Full-depth cure, shower use, cleaning, immersion or loading |
| Cure rate | A conditional depth-of-cure result for a named product and test environment | A guaranteed completion date calculated from bead depth |
| Through or full cure | The product’s stated completion milestone, when the document defines it | Suitability for an exposure that the same document excludes |
| Water or rain instruction | What the named product allows or requires for a stated exposure | Permission for every other kind of water exposure |
| Return to service | The manufacturer’s named service milestone, when one is supplied | A universal industry rule |
ASTM C679 treats tack-free time as a surface-cure measurement, not a through-cure result. Use millimetres-per-24-hours data to compare products and conditions, not as a simple project countdown.
Why Silicone Caulk Cure Time Changes
The same elapsed time can describe very different cure progress when the product, conditions or joint change. Check these variables against the product document:
- Exact product and cure system. Acetoxy, alkoxy and oxime products can carry different handling, cure and exposure instructions. If chemistry selection is still unresolved, use the neutral-cure and acetoxy silicone guide before comparing times.
- Temperature and relative humidity. Product data are tied to stated test conditions. Colder or drier conditions can extend the schedule where the TDS says so.
- Moisture and air access. A one-part product needs the conditions specified for its cure mechanism. A confined bead has a different path from a thin, exposed test specimen.
- Bead depth and geometry. Width, depth, exposed faces, backing and confinement change the path from the surface to the interior. When the joint is deeper than intended, review when a sealant joint needs backer rod.
- Package and storage history. Check shelf life, storage range, package condition and the batch or date code against the current record.
- Substrates and preparation. Clean, dry, compatible bond surfaces matter. Also separate an adhesion problem at the interface from slow cure within the bead.
Record the application conditions before trying to speed up the cure. Keep the joint within the product’s stated conditions rather than improvising with a hair dryer, heat gun, humidifier or added water.
When Silicone Caulk Is Not Curing: Two Real Applications
In one bathroom application we dealt with, the room was poorly ventilated and persistently damp, and the sealant took much longer than expected. The first reaction was to suspect a bad cartridge. We stepped back and checked the product, temperature, relative humidity, bead depth and exposed faces instead. Our judgment was simple: do not condemn the cartridge before checking the room conditions and the cure path. One-part silicone cures by reacting with moisture in the air, not oxygen.
We also reviewed a customer application where silicone was used to bond a large panel. The material at the perimeter firmed up first, while the thicker, confined bondline near the center needed far longer than the customer expected. The edge looked reassuring, but it was not representative of the middle.

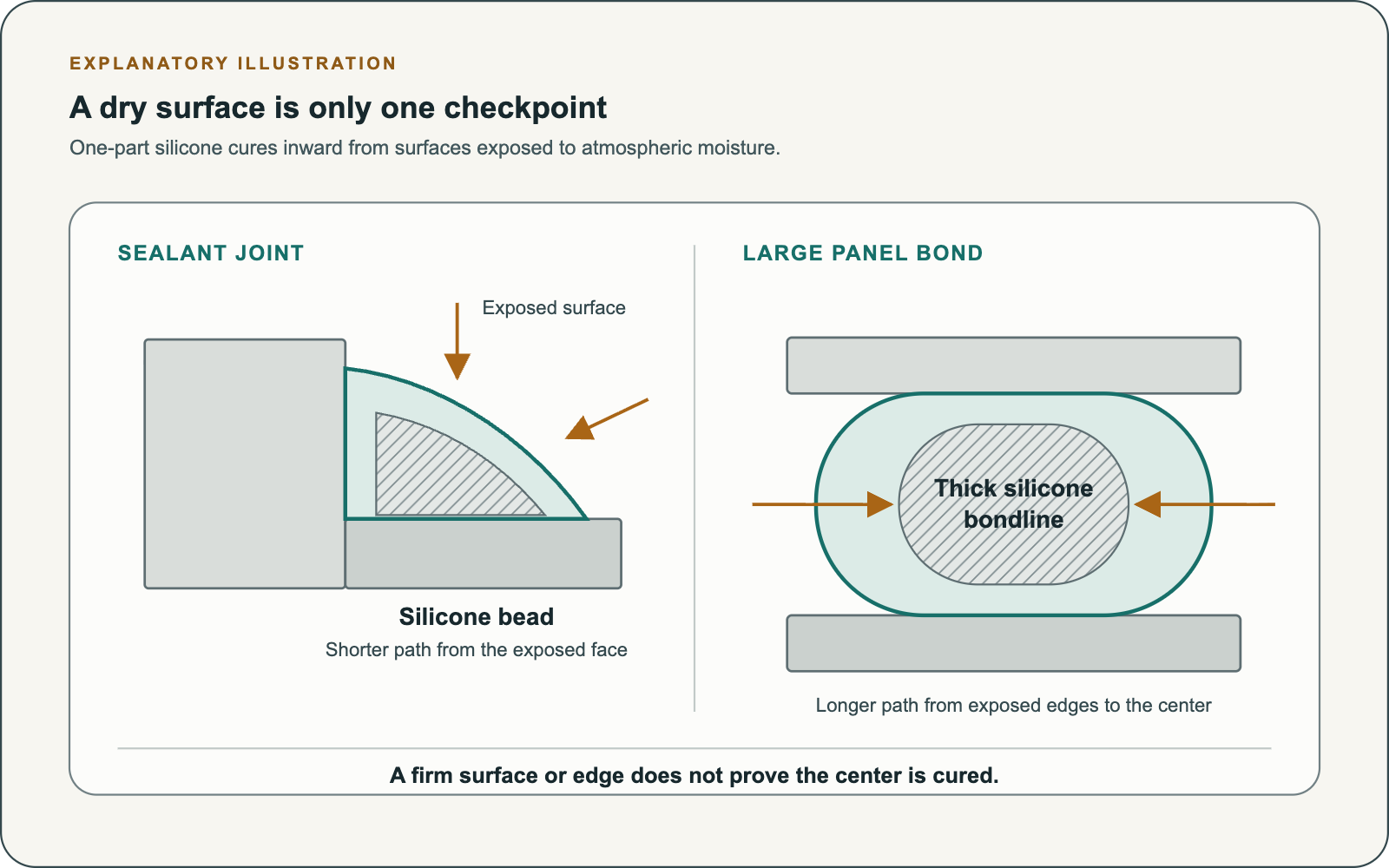

Both situations point to the same practical principle: one-part silicone cures inward from surfaces exposed to atmospheric moisture. The farther the center is from an exposed face or edge, the longer the cure path becomes. That is why the named product’s TDS, bead geometry and exposure conditions matter more than a universal time rule.
If the joint or bondline needs to be thick
Thickness changes the product and joint-design decision. For a deep sealant joint, control the depth with the product’s joint detail and backer rod instead of filling an unrestricted cavity. For a large panel bond, follow the adhesive manufacturer’s bead pattern, exposed cure path and temporary-support requirements.
If the bondline is very deep or highly confined, a deep-section or two-component cure system may be the better route. Applying ordinary one-part silicone in several passes is not a default solution; use staged application only when the product and assembly instructions call for it.
Structural or load-bearing panel bonds require the approved adhesive system and design. A general cure-time guide cannot replace that project-specific requirement.
Current Vesta Cure and Exposure Instructions Are Model-Specific
The three examples below show why the model and current document must come before the number. They are not interchangeable product recommendations.
| Product | Surface or cure data in the current record | Water or exposure instruction | What to check next |
|---|---|---|---|
| EX230 Acetoxy Silicone | Approx. 5–10 minute skin/handling window; recorded tack-free result of 0.10 h (about 6 minutes); approx. 3 mm per 24 h at 23°C and 50% RH | Protect from movement and water for at least 24 hours under normal conditions and at least 48 hours in cold or dry conditions | Confirm separately for shower use, standing water or immersion. |
| MR350 Sanitary Silicone | Customer TDS tack-free result of approx. 30 minutes by the named Method A; approx. 2–3 mm per 24 h at 23°C and 50% RH | Keep the fresh seal dry and undisturbed while it cures | Confirm the required time before shower use or cleaning. |
| WR550 Weather-Resistant Silicone | Approx. 25-minute skin, 1-hour tack-free result and approx. 2–3 mm per 24 h at 23°C and 50% RH. Around 6 mm deep: approx. 7 days under standard conditions; 10–15 mm or adverse conditions: approx. 14 days or longer | Protect from direct rain for at least 24 hours under normal curing conditions and extend protection under adverse conditions | Confirm separately for exposure beyond direct rain. |
Three details matter most: EX230’s 24/48-hour instruction is early protection, WR550’s approximately 7-day case applies to around 6 mm under standard conditions, and the current MR350 record gives no numeric shower-ready clearance.
Use the current Technical Data Sheet for the exact model before scheduling work. For a wet-area joint, the Kitchen & Bathroom application guide can also help confirm product selection.
Why Silicone Sealant May Still Be Tacky or Not Curing as Expected
Start by comparing the observed condition with the product record.
- Confirm the product and package. Record the brand, full model, market, TDS or label revision, batch/date code, package condition and known storage history.
- Name the milestone and symptom. Say whether the concern is tooling, skin, tack-free condition, through cure, water exposure or return to service. Note whether the surface transfers, the bead moves or the interface has pulled away.
- Record the conditions. Note elapsed time, ambient and substrate temperature, relative humidity if available, and any condensation or frost.
- Measure the geometry. Record bead width and depth, exposed faces, backing, confinement, both substrates and their finishes. Use cure-rate data as a comparison point, not a linear countdown.
- Build the exposure timeline. Record movement, rain, splash, shower use, cleaning, standing water or loading, including when each occurred.
If the bead is still within the product’s stated window, maintain the required protection. If its condition does not match the guidance, or the required service value is not supplied, send the record for review. An existing cured bead or layered reseal is a different problem covered in the old-silicone resealing guide.
How Long Before Silicone Can Get Wet?
There is no single silicone water-ready time. For the current Vesta records covered here:
- EX230: protect it from movement and water for at least 24 hours under normal conditions, or at least 48 hours in cold or dry conditions. This is the stated early-protection period.
- MR350: keep the fresh seal dry and undisturbed while it cures. The current record does not give a numeric shower, cleaning or return-to-service time.
- WR550: protect it from direct rain for at least 24 hours under normal curing conditions, and extend that protection in adverse conditions.
Rain, incidental splash, shower use, cleaning, standing water, pressure testing and immersion are different exposures. Use a time only for the exposure named in the product instruction: direct-rain protection is not shower or immersion clearance, and tack-free is not water-ready approval.
If the document does not name the exposure you intend, identify that exposure and ask for product-specific guidance.
What to Send for an Application Review
Send the exact product and current TDS or label, market, batch or date code, package condition and storage history; application date and time, temperature and relative humidity if available; bead width, depth, exposed faces and confinement; both substrates and finishes; the planned and actual exposure timeline; and a clear joint photo or drawing.
We will compare the application details with the current product guidance and flag anything that needs further technical review.
