Use backer rod when a non-structural sealant joint needs controlled cavity depth, isolation from a third bonding surface and firm support during tooling. The joint must also be able to accept the backing and sealant geometry required by the current product and project documents.
A backer rod is a flexible cylindrical foam backing—commonly closed-cell polyethylene, open-cell polyurethane or bi-cellular foam—installed behind sealant to control bead depth, support tooling and prevent adhesion to the joint base.
Do not make the choice from visible gap size alone. A shallow joint may need a compatible bond-breaking alternative instead of a round rod. Start with three questions: What must the sealant bead look like? Which surfaces may it bond to? What does the selected system require?
Start With the Joint, Not the Gap Size
| What you have | First check | Confirm with |
|---|---|---|
| Non-structural weather joint with movement, an open cavity and enough room for backing plus sealant | Consider a round backer rod | Sealant TDS, project detail, joint dimensions, backing material and compatibility |
| Shallow, lap or fillet condition where a round rod would crowd the sealant | Consider a compatible bond-breaking alternative | Selected manufacturer instructions and the project specification |
| Tight cosmetic seam that is not designed as a moving weather joint | Check whether backing is required | Joint function, assembly instructions and the exact caulk or sealant |
| Irregular, inaccessible or changing cavity | Get the section detail reviewed | Continuous backing, cleaning and tooling access, and the governing specification |
| Structural glazing, fire-rated joint, permanent immersion or another specialist system | Use the approved specialist system | Responsible design and system documents |
ASTM C1193-25 treats sealant backing, primer, cleaning, joint design and installation conditions as connected variables. It also directs users to the sealant manufacturer because products, joint designs and service conditions vary.
Manufacturer-specific dimensions, ratios and installation values apply only to the systems for which they were published.
When to Use Backer Rod
Backer rod is a likely choice when all three conditions line up:
- Non-structural joint. The sealant must work in a non-structural joint rather than simply cover a static cosmetic seam.
- Controlled cavity. The installed bead must follow the geometry required by the system.
- Two intended bond faces. The joint base must remain isolated so the sealant bonds only to the opposing faces.
The rod also gives the installer a firm surface to tool against. Tooling is not only a finishing step; it helps press the sealant against the intended bond faces.
Backing, joint dimension, prevention of three-sided adhesion and tooling support must be checked as one connected detail. Do not copy a rod size, depth ratio or installation value from another manufacturer’s system into a Vesta shortlist.

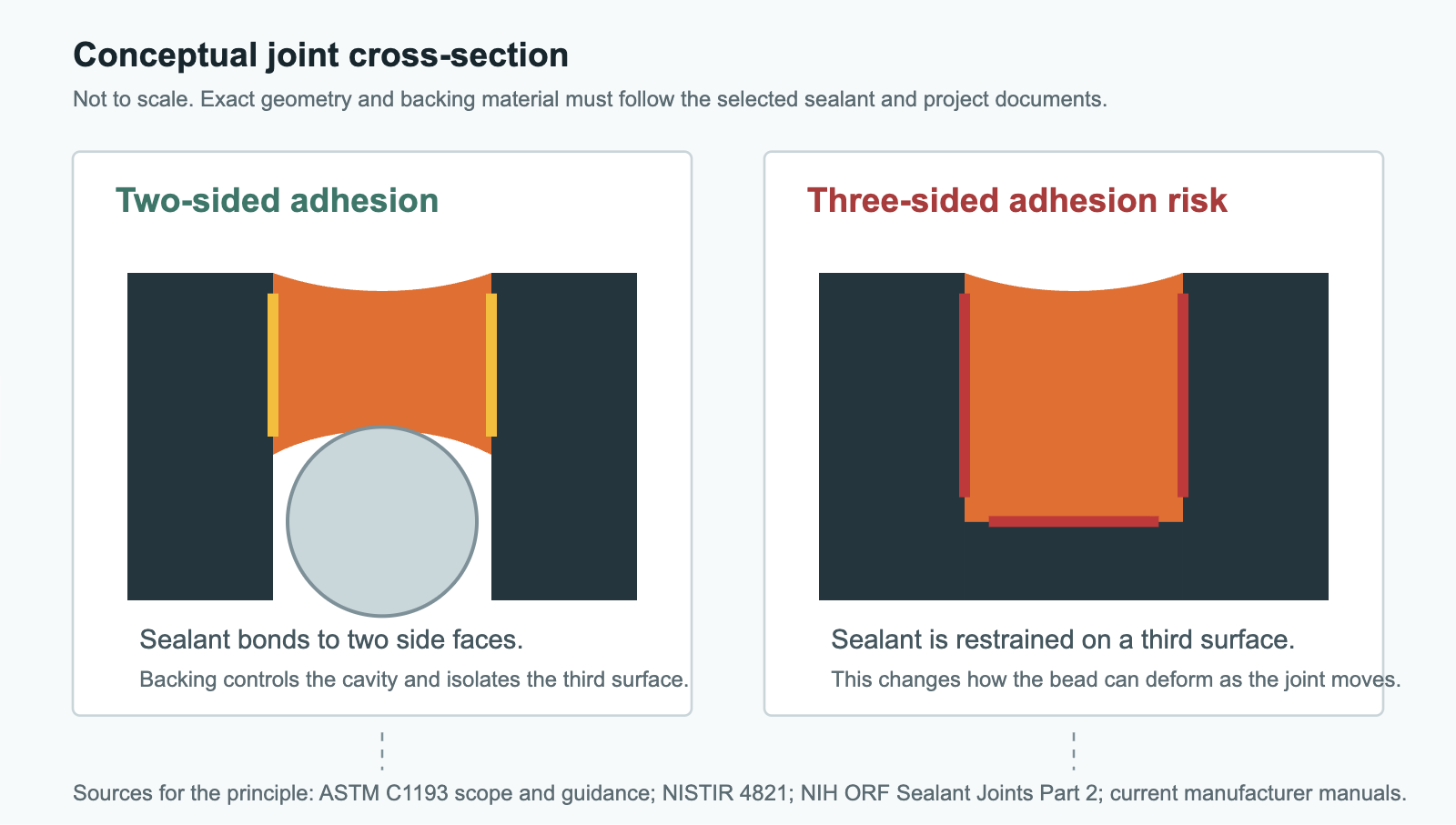

Why Two-Sided Adhesion Matters
In a two-sided configuration, the sealant adheres to the opposing joint faces while the surface behind the bead remains isolated. This leaves the bead free to deform as those faces move.
With three-sided adhesion, the sealant also attaches to the back of the cavity. That extra restraint changes how the bead can stretch and compress. NISTIR 4821 illustrates lack of backer rod, lack of tooling support and bonding to the back of a joint as poor joint-design conditions associated with adhesive or cohesive failure risk.
A visible gap alone does not show whether the joint was designed to accommodate movement or which surfaces the sealant should bond to. For a designed moving joint, confirm the intended bond line and take the exact dimensions from the selected sealant and project documents.
Backer Rod or Bond-Breaker Tape?
A round rod and bond-breaker tape can isolate the third surface in different joint geometries.
- Consider a round rod when the opening is continuous and deep enough to hold the required backing without crowding the sealant.
- Consider a compatible bond-breaking alternative when the joint is too shallow for a round rod or needs another way to isolate the back surface.
- Get the detail reviewed when the cavity changes width, has no continuous backstop, cannot be cleaned or prevents proper tooling.
The NIH Office of Research Facilities joint-design guide shows both backer-rod and bond-breaker approaches and emphasizes following manufacturer instructions.
A Rod Is Only One Part of the Specification
The instruction “use backer rod” answers only the first of three questions:
- Does this joint need backing or another way to prevent bonding at the joint base?
- Which backing material is compatible with the selected sealant, exposure and assembly?
- Where must it be positioned to leave the sealant geometry required by the current documents?
Use this guide to decide whether backing belongs in the joint. Take the rod type, size and installation depth from the selected sealant and project documents.
Measure the actual joint, identify its function and review the sealant system being considered. A number copied from another product page cannot answer those questions.
What Changes the Backing-Material Decision?
“Backer rod” is a category, not one interchangeable material. ASTM C1330-23 classifies cylindrical sealant backing as Type C closed-cell, Type O open-cell or Type B bi-cellular. Tremco’s backer-rod selection guide shows how their structures change compression, water behavior and outgassing risk in practice.
Open-Cell vs Closed-Cell Backer Rod: What Changes?
| Backer rod type | Typical strengths | Common fit | Main watch-out |
|---|---|---|---|
| Closed-cell — ASTM C1330 Type C | Resists water absorption and provides a firm backstop | Exterior, horizontal or moisture-exposed joints when the sealant system calls for it | Puncturing or overcompressing the skin can release trapped gas and bubble uncured sealant |
| Open-cell — ASTM C1330 Type O | Highly compressible and permeable; can help the sealant cure from the back of the bead | Dry joints where easy compression or permeability is useful | Can absorb or wick water, so avoid joints where water may pond |
| Bi-cellular — ASTM C1330 Type B | Combines a closed outer skin with a more compressible interior | Joints that benefit from easier installation without open-cell moisture wicking | Compression, outgassing and compatibility properties vary by product |
Choose the type from the joint exposure and installation conditions, then confirm it against the selected sealant and current manufacturer instructions.
Before selecting a backing material, check:
- whether the joint is vertical, horizontal, overhead or exposed to retained water;
- the sealant chemistry and cure path;
- both substrates, finishes and adjacent materials;
- whether the backing will be compressed, stretched, punctured or forced through an irregular cavity;
- the project specification and the current sealant manufacturer’s compatibility and installation requirements.
The selected rod or tape must provide a continuous, toolable backstop. Stacking scraps or forcing an unsuitable profile into a changing gap can leave voids and an inconsistent bead.
Check Windows, Doors and Facade Joints
At a window or door perimeter, identify the two materials, their finishes, the location of the weather seal, the available cavity and the expected movement. Use our Windows & Doors application guide for the application and material-selection context; use this article for the backing decision.

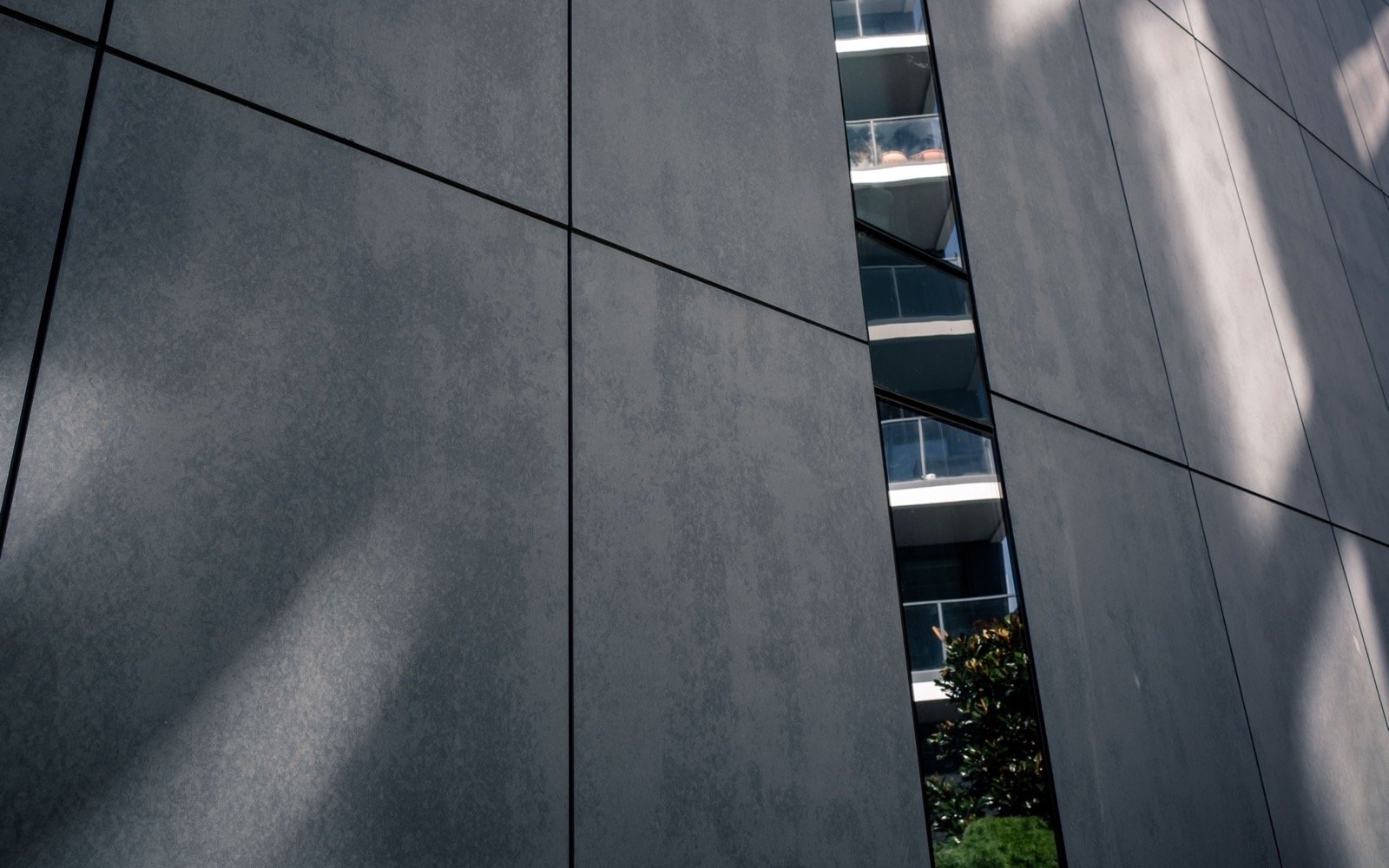

For a non-structural facade or roof weather joint, exposure, orientation, substrates and the project detail can change the decision. Our Roofing & Facade application guide provides that application-level context.
If you are considering WR550, see the WR550 product page and our Technical Library for its current TDS and related technical documents. Confirm project suitability and the required backing, geometry and primer from the applicable product and project documents.
When This Guide Is Not Enough
Move the detail to the responsible designer, system provider, sealant manufacturer or another qualified project authority when it involves:
- structural glazing or load-transfer joints;
- firestop or fire-rated joint systems;
- permanent immersion;
- traffic-bearing pavement joints;
- engineered movement calculations;
- a joint with unidentified coatings, membranes, plastics or adjacent materials;
- a cavity that cannot be measured, cleaned, backed continuously or tooled;
- any project where the specification and selected product document conflict.
What to Send Our Application Support Team
If you want us to identify the Vesta document or test question to address next, send our team:
- The joint location and function.
- Both substrates and their finishes.
- A clear photo and, if available, a section drawing.
- The measured joint width and total available cavity depth.
- Whether the joint is vertical, horizontal, overhead or exposed to retained water.
- The expected movement or controlling project specification, if known.
- The exact sealant model and current TDS under review.
- The proposed backing material, if one has already been selected.
- The country or market for the enquiry.
We can compare those details with our current product documents and tell you which Vesta document or test question to address next. Specialist design, structural, fire-system and final compatibility approvals remain with the responsible project authority.
