A sealant calculator should start with volume, not with a guess about how many tubes to buy. If you are trying to work out how much sealant you need, the calculation starts with the total joint length and the installed cross-section. For each group of joints with the same dimensions and profile, multiply the total length by the installed sealant cross-section. Divide that theoretical net volume by the exact net volume declared for the package being priced, then round up to a whole package. Add any project allowance as a separate, documented decision.
In real project inquiries, the first problem is often not the calculation itself. Buyers may know the project area or expected case count, but not the total joint length, actual sealant depth, or package volume needed for a reliable estimate. We often help organize those inputs before an order quantity can be discussed.
Quick rule: Calculate theoretical net volume first. Keep whole-package rounding, project allowance, and carton or MOQ constraints visible as separate steps.
Treat the output as a purchasing baseline. It does not choose the joint width or depth, approve a profile, select a sealant, or confirm compatibility and performance.
Calculate the Theoretical Quantity
Joint volume worksheet
Calculate sealant volume and packages needed.
Enter one joint zone at a time
Use measured joint geometry and the exact net volume printed for the package being priced. Group zones with different dimensions or profiles and calculate them separately.
Enter the joint dimensions and package net volume to calculate.
- Theoretical net volume
- —
- Fractional packages
- —
- Whole packages for net volume
- —
- Theoretical yield per package
- —
- Volume after entered allowance
- —
- Whole packages after entered allowance
- —
The result will show the profile formula and unit conversions used.
Quantity boundary: This calculator estimates quantity only; joint design and product approval remain separate decisions.
Enter one consistent joint group at a time. If the width, actual sealant depth, profile, or units change, calculate that group separately and add the theoretical net volumes before converting the total to packages.
The allowance field is deliberately blank. Use it only when the estimating or project team has recorded a project-specific value and reason. The calculator does not supply a standard waste percentage or package size.
Collect the Inputs Before Calculating
The calculation is reproducible only when every input describes the same joint group and revision.
| Input | What to record | Do not substitute |
|---|---|---|
| Joint-zone ID | Elevation, grid, room, detail, or takeoff group | Total building or floor area |
| Total joint length | Sum of the runs in that dimension group | A rough perimeter without a takeoff basis |
| Joint width | Installed or specified sealant width | A universal width-to-depth ratio |
| Actual sealant depth or height | Rectangular sealant depth, or triangular profile height | Full cavity depth automatically |
| Profile | Rectangular joint or triangular/fillet approximation | “Bead” without a cross-section |
| Units | Units for every length and cross-section input | Mixed metric and imperial values |
| Package | Exact format and declared net volume for the product/market | “Tube,” “cartridge,” or “sausage” alone |
| Project allowance | Entered value, owner, and reason | A hidden calculator default |
When dimensions vary, do not conceal them inside one unsupported average. Calculate each group, record its net volume, and then sum the groups. That keeps a revised elevation or detail traceable without rebuilding the whole estimate.
Choose the Installed Cross-Section

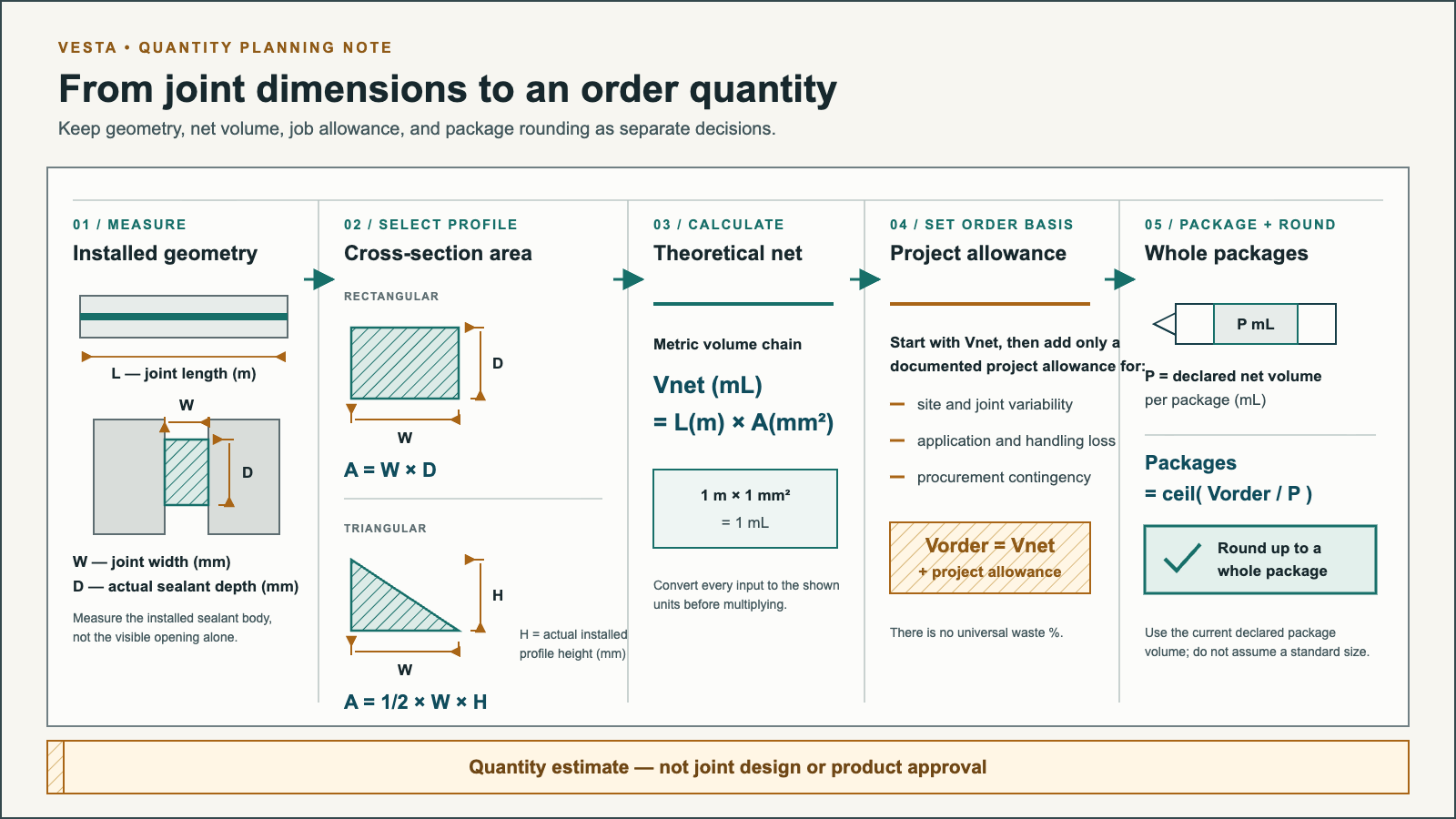

The volume calculation is length multiplied by cross-sectional area. The area branch must match the installed wet profile closely enough for the estimate.
For a rectangular joint:
Area = width × actual sealant depth
For a triangular or fillet profile:
Area = width × actual installed height ÷ 2
The one-half multiplier is geometry, not a joint-design rule. A concave, convex, irregular, or multi-part profile is not automatically a perfect triangle or rectangle. Stop and use the approved detail or another supported method when neither branch represents the intended sealant body.
These formulas are cross-sectional geometry, not a sealant-system approval. Choose the installed profile and product from the project documents, then use the matching area branch for the estimate.
Use actual sealant depth, not the full cavity by default
Where backing or a bond breaker defines the sealant section, measure the installed sealant depth from the joint surface to the top of that backing. A deep opening can therefore have a much smaller installed sealant depth than its total cavity depth.
The quantity tool accepts the depth supplied by the project detail; it does not decide that depth. If the detail is not settled, review when a sealant joint needs backer rod and the product guidance before using the calculator.
Use One Unit System at a Time
Metric calculation
With length in metres and cross-section dimensions in millimetres, the unit identity is especially convenient: 1 m × 1 mm² = 1 mL.
Rectangular profile:
Vnet (mL) = L(m) × W(mm) × D(mm)
Triangular profile:
Vnet (mL) = L(m) × W(mm) × H(mm) ÷ 2
Divide millilitres by 1,000 to report litres.
Imperial calculation
With length in feet and the cross-section in inches, first convert the length to inches.
Rectangular profile:
Vnet (in³) = L(ft) × 12 × W(in) × D(in)
Triangular profile:
Vnet (in³) = L(ft) × 12 × W(in) × H(in) ÷ 2
Then convert cubic inches to the package-volume unit. NIST SP 811 supports 1 in³ = 16.387064 mL; its conversion table displays 1 US fl oz = 29.57353 mL. US fluid ounces, Imperial fluid ounces, and mass ounces are different units. Confirm the package label before converting.
Measurement precision still controls the useful precision of the answer. Exact conversion definitions do not make a rough takeoff more accurate.
Work Through One Auditable Example
Assume one rectangular joint group has these recorded inputs:
- Total length: 120 m
- Width: 12 mm
- Actual sealant depth: 6 mm
- Profile: rectangular
- Declared net package volume: 600 mL
These are example inputs, not recommended joint dimensions, a standard package capacity, or a product-coverage claim.
First calculate the cross-section: 12 mm × 6 mm = 72 mm².
Then calculate theoretical net volume: 120 m × 72 mm² = 8,640 mL, or 8.64 L.
Convert that net volume to packages: 8,640 ÷ 600 = 14.4 packages. The minimum whole-package baseline is therefore ceil(14.4) = 15 packages.
For a reverse check, one 600 mL package has a theoretical yield of 600 ÷ 72 = 8.333 m at this exact cross-section. 120 ÷ 8.333 = 14.4 packages, which agrees with the forward calculation.
Now suppose the estimator’s project record separately approves a 12% allowance for this example. Apply it to net volume before final package rounding: 8,640 × 1.12 = 9,676.8 mL; 9,676.8 ÷ 600 = 16.128; ceil(16.128) = 17 packages.
The 12% value illustrates where a documented project input belongs. It is not a Vesta default or recommendation.
Separate Net Volume, Allowance, and Commercial Packaging
Several numbers may appear in one procurement discussion, but they answer different questions.
| Layer | Calculation | Decision owner |
|---|---|---|
| Theoretical net volume | Length × supported cross-sectional area | Estimator using approved dimensions |
| Fractional package equivalents | Net volume ÷ exact declared package volume | Transparent arithmetic |
| Whole-package baseline | Round the net-equivalent result upward | Purchasing arithmetic |
| Project order scenario | Net volume × entered allowance, then divide and round upward | Project/estimating team |
| Carton, MOQ, or pallet quantity | Apply the supplier’s confirmed commercial unit after material quantity | Buyer and supplier |
Round-up is not a waste rate. It is the arithmetic consequence of buying whole packages. Carton or MOQ rounding is also not material consumption; keep it visible as a commercial constraint.
A project allowance may reflect joint variation, starts and stops, tooling, access, mockups, partial-package handling, or procurement needs. Record the value and reason instead of hiding it in the calculator.
Package names are not capacities. For example, current WR550 Weather-Resistant Silicone records list both 300 mL cartridges and 600 mL foil packages. That is a product-specific example, not a sitewide Vesta default. Confirm the product, market, package, and carton before ordering.
Catch Quantity Errors Before the Order
| Error | How it changes the estimate | Control |
|---|---|---|
| Missing total joint length | No auditable volume can be calculated | Complete the takeoff by joint group |
| Wrong profile branch | Rectangle and triangle use different cross-sectional areas | Confirm the intended installed profile or drawing |
| Full cavity depth used as sealant depth | Counts space that may be occupied by backing or left outside the sealant body | Use the approved actual sealant depth |
| Mixed units | Can change volume by orders of magnitude | Normalize units before multiplying |
| Package format without net volume | Produces an unsupported package count | Enter the exact declared volume for the quoted package |
| Premature rounding | Hides the mathematical basis and can compound error across groups | Sum net volume first, then round the final package scenario |
| Hidden allowance | Makes field planning look like geometry | Show the entered value, owner, and reason |
| Unlike joints combined as one average | Hides which zone drives consumption | Calculate each dimension/profile group separately |
Understating quantity can interrupt work and trigger replenishment. On a visually sensitive project, that also adds a product, color, and lot-continuity check. Overstating quantity can leave surplus or opened partial packages with no approved next use.
Build a Quantity Brief for Quotation
Use one controlled brief instead of asking a supplier to infer quantity from drawings, floor area, or a case count.
| Brief field | Value to provide |
|---|---|
| Project and joint-zone ID | Elevation, grid, room, detail, or takeoff group |
| Dimensions by group | Total length, width, actual sealant depth or triangular height |
| Profile and units | Rectangular/triangular branch, or drawing reference for another profile; unit for every input |
| Product route | Selected product/model under review and current document revision |
| Package route | Exact format, declared net volume, units per carton, and quoted market |
| Allowance | Entered value, decision owner, and project-specific reason |
| Commercial constraints | Carton, MOQ, pallet, partial-package, or delivery-stage requirement |
| Continuity details | Color and any lot/sequence requirement for the project |
| Evidence | Drawing, joint schedule, takeoff, photo reference, and revision date |
Vesta’s commercial or application team can check the input set, recalculate the package arithmetic, and compare the available package route. Joint and product approval still require the project detail and product guidance.
The Roofing & Facade application guide helps frame exterior application conditions, while the technical library is the place to check the current product document. Quantity comes after those project inputs are defined, not in place of them.
Keep Quantity, Design, and Product Approval Separate
The public scope for ASTM C1193-25 treats joint design, backing, substrate preparation, installation conditions and sealant selection as connected decisions. A quantity calculator should not replace those decisions.
Use the calculator only for the material-volume question:
- Quantity math can calculate: theoretical volume, fractional packages, whole-package rounding, and an entered allowance scenario.
- The designer or application team must define: the joint detail, actual sealant depth/profile, backing route, movement and exposure requirements.
- The product document must confirm: suitability, substrates, primer, conditions, package availability, and application limitations.
A precise package count is still only as reliable as the dimensions, profile, units, package declaration, and project assumptions entered.
Sealant Calculator FAQ
How do I calculate how many cartridges of sealant I need?
Calculate net sealant volume from total length and the supported installed cross-section, divide by the exact declared cartridge volume, and round upward to a whole cartridge. Calculate different dimension/profile groups separately.
How much sealant do I need?
Multiply total joint length by the installed cross-sectional area to get theoretical volume, divide by the package net volume, and round up to whole cartridges or packages. For different joint sizes or profiles, calculate each group separately before adding the results.
Does this sealant coverage calculator include waste?
It does not assume a waste rate. The optional allowance is blank until the estimator enters a documented project-specific value. The result shows net volume and the entered order scenario separately.
Is a caulk calculator different from a sealant calculator?
For this quantity task, both search terms can lead to the same length-by-cross-section arithmetic. The material name does not settle product chemistry or suitability, so confirm the exact sealant and application separately.
Can I use the full joint cavity depth?
Only when the approved detail confirms that it is the actual sealant depth for the supported profile. Where backing or a bond breaker defines the sealant body, use the intended depth to that boundary rather than the unrestricted cavity depth.
Does the package count approve a Vesta sealant for the project?
No. Quantity math does not establish product suitability, compatibility, joint design, exposure limits, or field coverage. Check the exact current product document and send the project inputs for application review.
