Curtain wall sealant repair often begins with a visible symptom: a split bead, a debonded edge, staining or water appearing near an interior frame. The tempting response is to add another bead over the old one. That can cover the failed interface while the water path remains open.
The first question is not “Which sealant should we use?” It is “What is this joint responsible for, and where did the system stop working?” A perimeter weatherseal, gasket, weep, flashing, membrane, internal drainage path and structural glazing joint may sit close together while requiring different decisions. If the original sealant is unknown, keep that uncertainty visible in the repair record.
Once the joint is understood, the repair usually becomes one of four jobs: evaluate a bounded local failure, consider a full cut-out and reseal, investigate a neighboring system, or hand the issue to the specialist responsible for it. The rest of this guide shows how to tell them apart.
Why adding another bead is not a diagnosis
A new bead only addresses the exposed surface. Before choosing it, establish whether the visible joint is the source of the water, whether another component has failed, and what surfaces the new material will touch.
The damp interior corner does not tell you which layer failed. Water may be entering through another joint, a blocked or misdirected drainage path, a gasket or flashing interface, a membrane transition, or a connection that the perimeter sealant was never meant to protect. Closing the first visible gap can leave the original path active.
The old bead also carries information. A clean peel from one surface, a tear through the middle, a failed coating or a dirty bond line each calls for a different check. An unknown original polymer adds another layer of uncertainty.
Treat the product label as the last part of the diagnosis, not the first. A weather-resistant silicone can enter the discussion after the role and materials are confirmed as a compatible non-structural perimeter weatherseal. Structural glazing, an insulating-glass secondary seal, a perimeter fire barrier and an internal drainage problem belong to their own systems.
First identify the joint role
Before deciding whether to clean, locally evaluate, remove or reseal anything, record what the joint is supposed to do. The same facade can contain several sealant and accessory systems with different owners and consequences.
| What the joint may be | What it is trying to do | What to do next |
|---|---|---|
| Non-structural perimeter weatherseal | Limit weather entry at a compatible exterior interface while accommodating the documented joint movement. | Confirm the failure is limited to this weatherseal, then check the actual surfaces and adjacent materials. |
| Structural glazing or load-related bond | Transfer or retain load as part of a defined glazing system. | Send the joint to the responsible structural-glazing technical team. Weather resistance alone is not structural qualification. |
| IGU secondary seal or insulating-glass edge | Protect or complete the insulating-glass unit edge system. | Treat it as part of the glazing-unit system and confirm the responsible team before choosing a material. |
| Perimeter fire barrier or firestop interface | Maintain a fire-resistance assembly or its continuity. | Follow the project-approved firestop system and responsible specialist. |
| Gasket, weep, flashing, membrane or internal drainage path | Manage movement, pressure, water shedding or drainage elsewhere in the envelope. | Inspect the adjacent system and trace the actual path before assigning the repair. |
If drawings, records or a competent site review do not identify the role, leave it open until they do. “It looks like exterior silicone” is not enough to choose a replacement.
For the separate product-selection question, see the curtain-wall qualification guide. It starts with product documents after this page has established a non-structural perimeter weatherseal.
Read the failure at the interface
Once the joint role is known or narrowed, inspect the failure at the interface. Use photographs, drawings, the original specification, product labels or retained samples where available. Write down what you can see before you name a cause.
| Observation | What it may indicate | Next check |
|---|---|---|
| Separation at the sealant edge | Adhesive-interface loss, a weak or incompatible surface, movement demand, preparation history or an adjacent material issue. | Compare both sides of the joint. Identify which surface is clean, which surface retains residue, and what finish is present. |
| Tear through the sealant body | Stress in the cured material, joint geometry, movement or local damage. | Check the joint geometry, movement requirement and whether the original bond faces remain usable. |
| Cracking, delamination or powdering in the substrate or coating | Failure in the surface carrying the sealant, including coating condition or substrate movement. | Deal with the surface condition before selecting a replacement sealant. |
| Residue, dust, oil, release agent or biological growth | A preparation condition that may affect wetting and adhesion. | Identify the contaminant and use the project or product preparation requirement; do not assume a generic cleaning step is enough. |
| Unknown original sealant or adjacent accessory | Material and compatibility uncertainty. | Find the product label, specification, retained sample or a suitable material check before choosing a new chemistry. |
The key record is not just “sealant failed.” For example, a bead that has peeled cleanly from the aluminum while remaining attached to the glass calls for a different conversation from a tear through the middle of the bead. A coating that comes away with the sealant points to the surface, not simply to a stronger replacement product. Record what remains on each side, whether the finish is damaged, and which gaskets, backing, membranes or other materials will touch the replacement.
For joint geometry, backing and two- or three-sided adhesion questions, use the backer-rod and joint-geometry guide. The actual joint and sealant system decide the proportions.
Decide what repair the evidence supports
The diagnosis should tell you what happens next. After the joint role and failure interface are documented, choose the repair scope the evidence actually supports.
Continue local evaluation
Continue when the issue is reasonably bounded to a compatible, non-structural perimeter weatherseal and the interface, joint geometry, exposure, surfaces and adjacent materials can be checked. A short, localized section with identifiable materials may be a sensible place to start; a widespread or unexplained failure calls for a broader look.
Keep the old sealant identity, surface condition, movement requirement and current product documents together. If the existing system is still unknown, keep the decision provisional.
Consider a full cut-out and reseal
A full cut-out and reseal becomes relevant when the existing bead, bond surfaces, geometry or material history cannot support a reliable local repair. If the old bead has separated along most of one bond line or the surface beneath it is breaking down, a small patch may tell you very little. Start with the joint role, substrate and finish condition, adjacent materials and project quality controls.
The result may be a full reseal, a different system, or a finding that the visible seal is not the leak source. A replacement bead that looks simple from the exterior does not settle that question.
Request the missing evidence, a test or a mock-up
Ask for more evidence when a repair may be possible but one decision-critical fact is missing. Depending on the project, that may include:
- the original drawings, specification, repair history or joint detail;
- the exact existing sealant and adjacent accessory identities, if available;
- both real bond surfaces, including coatings, treatments and finishes;
- the required movement, exposure and joint geometry;
- the current TDS and installation documents for the proposed material;
- an appropriate adhesion or compatibility review on the actual materials;
- a defined mock-up or project review when the scale or uncertainty warrants it.
For an installed weatherproofing joint, ASTM C1521 provides a field practice for evaluating sealant adhesion. It can help document adhesive or cohesive failure, but it does not by itself identify the leak source.
Each check should answer a practical question. A test name, certificate or mock-up photograph helps only when it represents the actual joint and materials. Match the evidence to the uncertainty instead of ordering every possible laboratory test.
Stop when the joint belongs to another system
Stop the ordinary reseal path when the joint may be structural, part of an insulating-glass or firestop system, tied to permanent load, or outside the documented responsibility of a general weatherseal product. The same applies when the water path remains unresolved, the substrate is failing, a critical material conflict is suspected, or the required movement and compatibility evidence is missing.
The handoff is about responsibility, not product quality. Structural-glazing, insulating-glass, firestop, facade, waterproofing or building-envelope teams should handle the systems they own.
What to gather before approving a reseal proposal
Ask for a compact project record rather than a generic product brochure. The first review should identify:
- Joint role: non-structural perimeter weatherseal or another system?
- Observed failure: where has separation, tearing, cracking, contamination or unknown material been recorded?
- Water path: what evidence links the visible defect to the reported symptom, and what adjacent paths remain open?
- Bond surfaces: what exact glass treatment, metal finish, coating, substrate or repair material will contact the replacement?
- Adjacent materials: which gaskets, backing, membranes, flashing, weeps, coatings or other accessories touch the joint?
- Product identity: what exact model and current TDS revision are proposed, and is the original material known?
- Project requirement: what movement, exposure, geometry and verification or mock-up requirement applies?
- Decision owner: which qualified team owns any structural, firestop, IGU, drainage or substrate issue?
Use the silicone TDS guide to separate test results and stated uses from project approval. A TDS helps with the product question; the facade still needs its own diagnosis.
When a weather-resistant silicone becomes relevant
A weather-resistant silicone enters the discussion only after the issue has been confirmed as a compatible, non-structural perimeter weatherseal. At that point, WR550 can be evaluated as Vesta’s weather-resistant silicone option against the actual bond surfaces, finishes, movement, exposure and adjacent materials. Its current English TDS identifies it as a one-component, non-sag, weather-resistant silicone for the documented building-envelope use. If the required inputs are missing, ask for them. If the joint is structural, firestop, IGU-related or part of another specialist system, use the responsible team instead.
See the WR550 product page for current model documents and the Curtain Wall application page for application context. For the separate question of old-silicone overlay, see Can You Apply Silicone Over Old Silicone?.
What you can decide before a site review
From a desk, you can decide what to inspect, what to ask for, and when a failed curtain-wall joint has moved beyond an ordinary weatherseal repair. You cannot locate a particular leak source, confirm a hidden substrate, or approve a project repair without the real assembly and its responsible team.

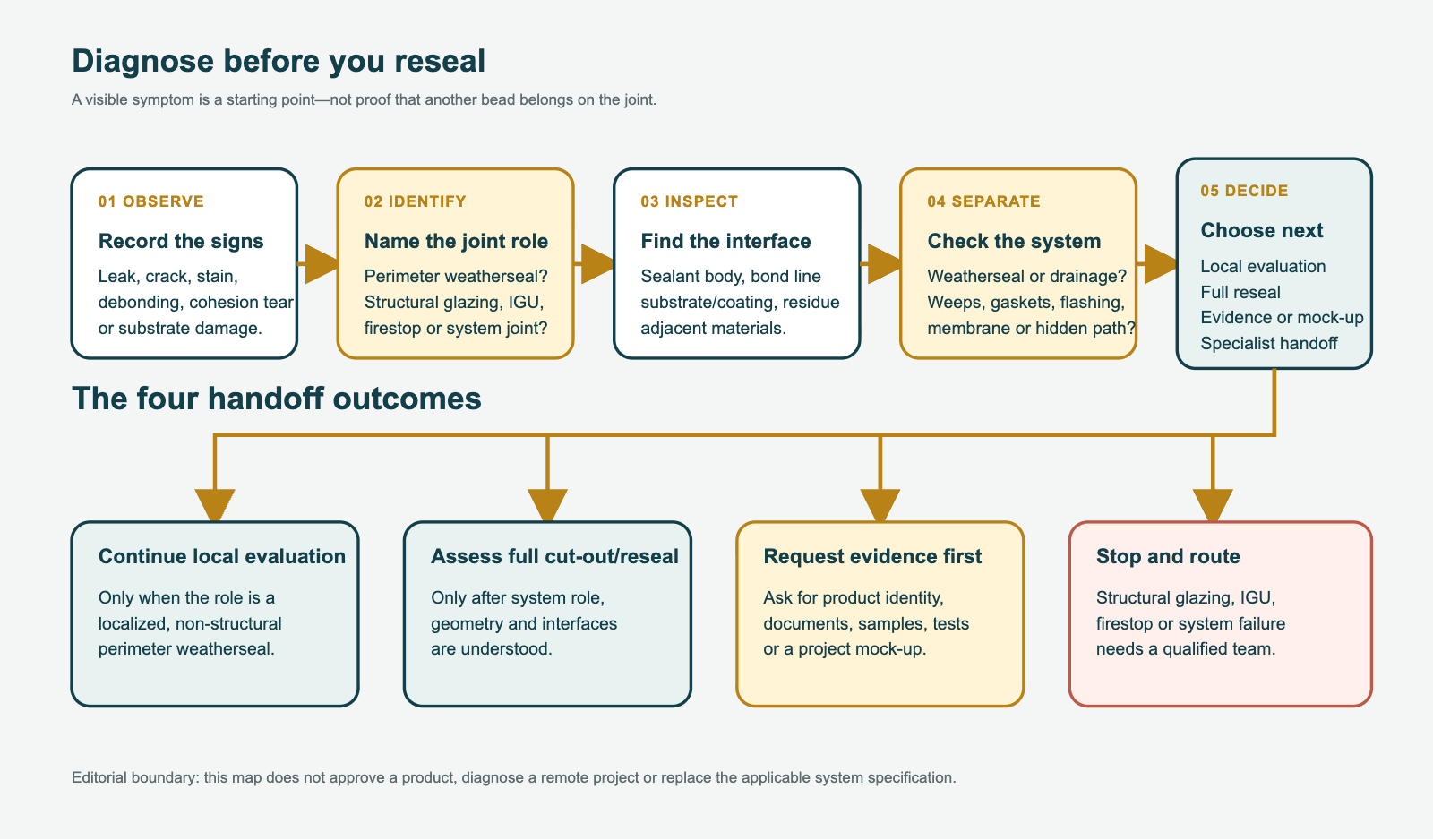

The useful sequence is simple: identify the joint role, record the failed interface, separate the weatherseal from adjacent systems, gather the missing information, and then compare a candidate product. That is how you keep a new bead from becoming a guess.
