The interior vs exterior window sealant decision is not a simple “acrylic inside, silicone outside” rule. For interior window caulk at a dry frame-to-trim joint that must be painted, start by considering a paintable acrylic sealant. For exterior window caulk at an exposed perimeter joint, start by considering a weather-resistant silicone. Then check movement, contact surfaces, exposure and drainage before selecting a product.
If the water path is unknown or keeps returning, stop material selection and investigate the window system instead.
Quick rule: match the sealant to the joint—not simply to the inside or outside of the window.
Here, “product document” means the current TDS or other applicable Vesta technical document for the target market.
Start With the Joint’s Job
Whether an enquiry says “window caulk” or “window sealant,” the same opening can contain different joints doing different work. An interior frame-to-trim gap may be a protected finish joint where paintability is one of the deciding inputs. An exterior frame-perimeter joint may be an exposed, non-structural weather seal that must match the expected movement, the surfaces it contacts, and its service exposure. Flashing, the water-resistive barrier, sill or pan drainage, and manufacturer-designed weep paths have separate water-management jobs.
DOE/PNNL guidance treats a window opening as an interruption in the wall’s drainage plane, so flashing and the wall’s water-control layers still have to direct water out. FEMA guidance likewise distinguishes between surface-barrier and drainage-system approaches. A visible sealant joint does not replace those layers or an outlet designed to drain water.
Before comparing materials, finish this sentence: This joint exists to ______. If the answer is not clear, the material decision is not ready.
Check Paintability Before Selection
Ask one question before anyone selects the sealant: must this joint be painted?
We see this mistake again and again: silicone is installed on the inside of a window frame, and only later does someone realize the joint still needs paint. By then, the wrong sealant is already in place. Paintability has to be checked before the sealant is chosen.

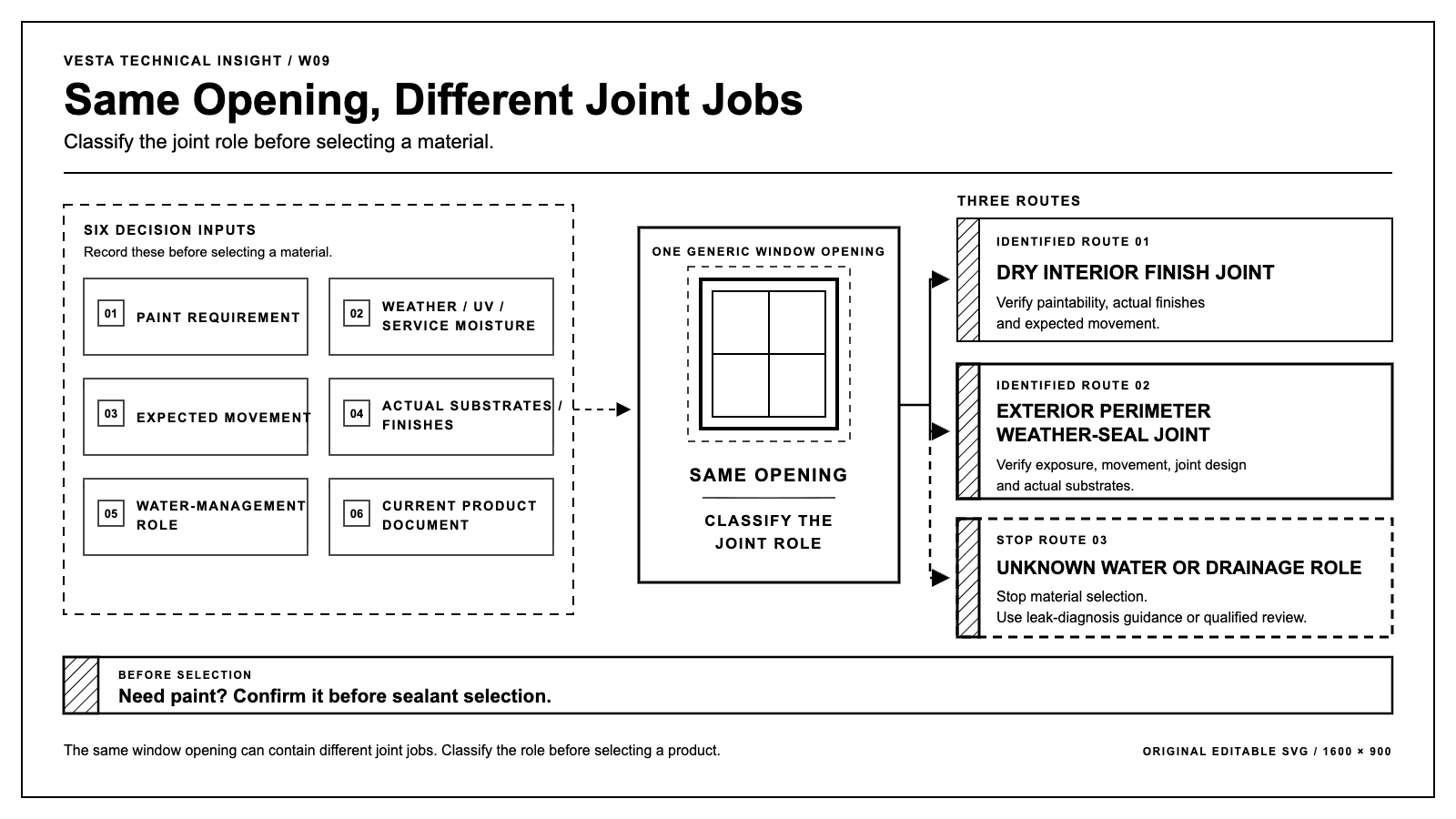

Run the Six-Input Matrix
Record all six inputs before selecting a product. The matrix organizes the decision; it does not replace the TDS or project requirements.
| Input | What to record before selection | How it changes the route |
|---|---|---|
| Paint requirement | Whether the finished joint must accept the actual paint or coating system | Need paint? Confirm it before sealant selection. Do not assume a chemistry or generic “paintable” label works with every paint system. |
| Weather, UV, and service moisture | Dry protected interior conditions, exposed perimeter weather conditions, or another service environment | Exterior exposure requires TDS coverage. Stop if the intended service falls outside that coverage or the job is concealed water management. |
| Expected movement | The controlling project movement or classification, if known; otherwise record that it is unknown | A low-movement finish gap and a moving perimeter joint are not interchangeable. Do not infer movement capability from elongation at break or an unrelated test value. |
| Actual substrates and finishes | Frame material and finish, adjoining material and finish, and any unfamiliar, coated, or non-porous surface | Adhesion and compatibility depend on the surfaces that will actually contact the sealant. Check the applicable document and complete the required project testing rather than assuming universal approval. |
| Water-management role | Interior finish gap, exposed exterior perimeter weather seal, identified drainage or weep path, or unknown role | Preserve an identified drainage path. An unknown or recurring water path goes to the stop route. |
| Current product document | Exact product, revision, market, intended role, limitations, and required checks | Chemistry alone does not authorize the use. If the current document does not cover the role and conditions, there is no product recommendation. |
The matrix leads to three outcomes:
- Interior candidate: an identified dry frame-to-trim finish gap with a checked paint requirement, expected movement, contact surfaces and product coverage.
- Exterior candidate: an identified compatible, non-structural perimeter weather seal with checked exposure, movement, joint design and contact surfaces.
- Stop: the joint role, drainage function, water source, required performance or product coverage remains unknown, outside scope or recurring.
Stop When the Path Is Unknown
Stop material selection when the joint’s job, drainage function, or water source is unknown or when water keeps returning. Do not cover an identified manufacturer or system drainage path. Use Can Silicone Fix a Leaking Window? or a qualified window or building-envelope investigation before choosing a sealant.
Match the Classified Joint to a Product Candidate

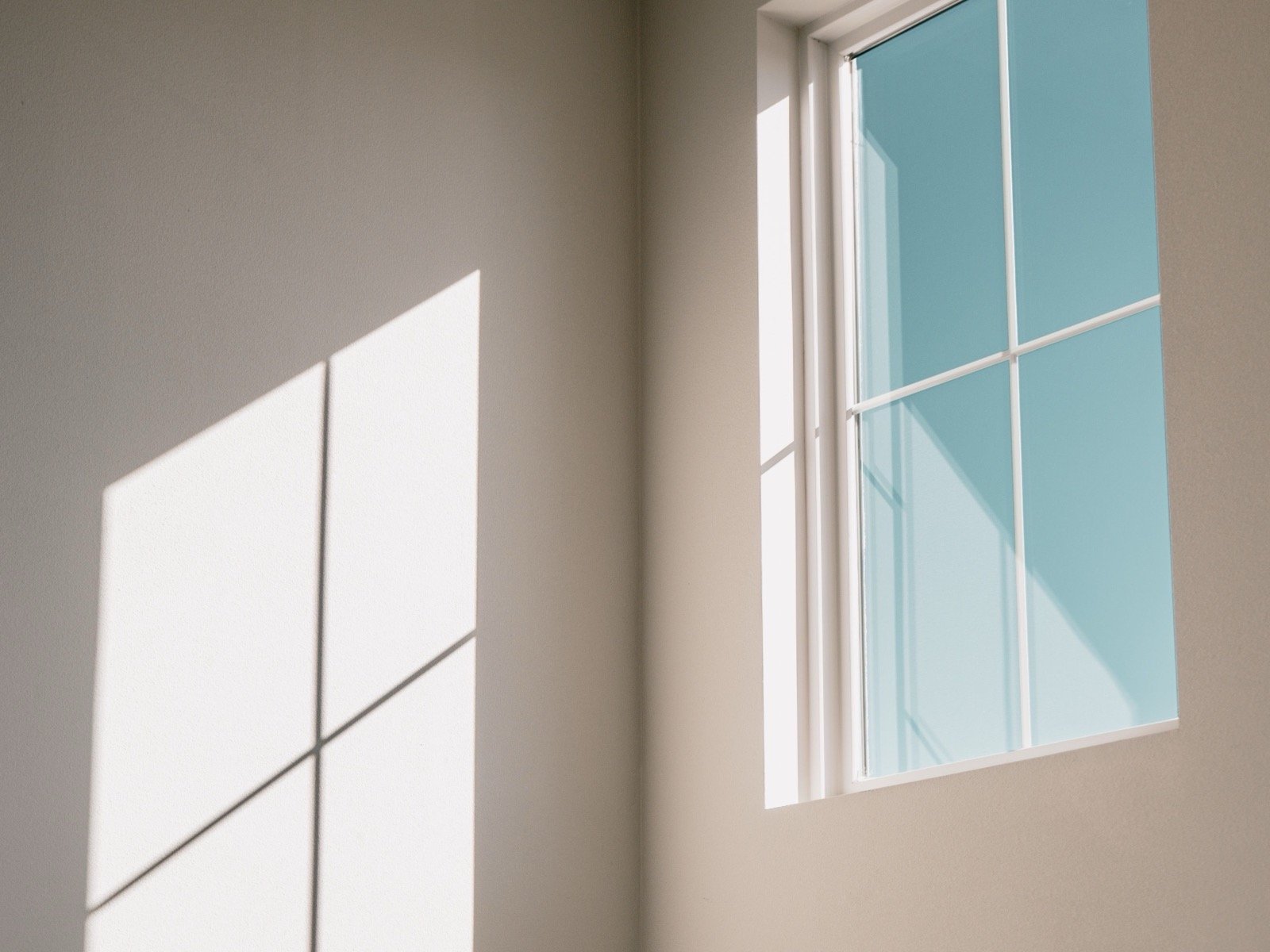

When paint is part of the interior finish
For an identified dry interior frame-to-trim finish gap, verify the actual paint system, both contact surfaces and the expected movement before evaluating a product. “Indoors” alone is not enough; product coverage must match the recorded role and conditions.
At that point, Vesta CR210 Acrylic Sealant can enter the shortlist as a water-based acrylic candidate for dry interior window-frame and trim filling and paint-ready finishing. After sufficient drying, it may be overpainted with many common water-based paints, provided the actual paint system is tested.
Use CR210 only for the documented dry-interior finish role; that role does not extend to exterior weather sealing or waterproofing. Check the current CR210 TDS and project conditions for paint timing, movement and surface or finish compatibility.
For an exposed exterior perimeter joint
For an identified exposed exterior perimeter joint, first confirm that it is non-structural and separate from designed drainage. Then check weather, UV and service-moisture exposure, expected movement, joint design, both contact surfaces and project conditions.
Once those checks are complete, Vesta WR550 Weather-Resistant Silicone may be considered as a candidate for compatible, non-structural exterior window and door perimeter weather-sealing joints.
Do not turn that candidate into a blanket “silicone outside” rule. Check the current WR550 TDS for the applicable exposure, movement, substrate and joint-design requirements.
What to Do After You Classify the Joint
After classification, use Compare Window Sealant Routes for Vesta’s application-level overview. If you need a document comparison, compatibility question, or sample, Discuss Your Application and send:
- One full-opening photograph or drawing and one marked close-up of the joint.
- The destination country or market.
- Whether the joint is inside or outside and its exact physical location.
- Its intended role: interior finish gap or exposed exterior perimeter weather seal.
- The frame material and finish, plus the adjoining material and finish.
- The actual paint or coating requirement.
- The weather, UV, and service-moisture exposure.
- The expected movement or controlling project specification, if known.
- Whether the proposed joint is known to be separate from a manufacturer-identified drainage or weep function. If that is unknown, material selection stops rather than asking Vesta to infer the water path from photographs.
- The exact product and current document under review, and whether you need a compatibility or adhesion check, test plan, document, sample, or clarification of the required approval path.
We can compare the joint role and conditions you provide with the current CR210 or WR550 TDS, identify missing compatibility, adhesion or testing inputs, and point you to the relevant product, technical resource, or sample path.
That support does not include concealed-leak diagnosis or project approval. We cannot determine unknown flashing, WRB, drainage, or weep conditions from photographs, or guarantee universal compatibility or site performance.
