Yes, silicone can be a good concrete joint sealant—but only for the right joint and the right product. A qualified silicone is a candidate for many moving exterior weatherseals, facade perimeters and precast joints. It is not automatically the right answer for a hard-wheel floor, a random crack, a permanently immersed joint or a surface with weak or unknown bond layers.
The useful starting question is not “Is silicone good for concrete?” It is: What is this joint expected to do, and what does the exact product document for the actual surface?

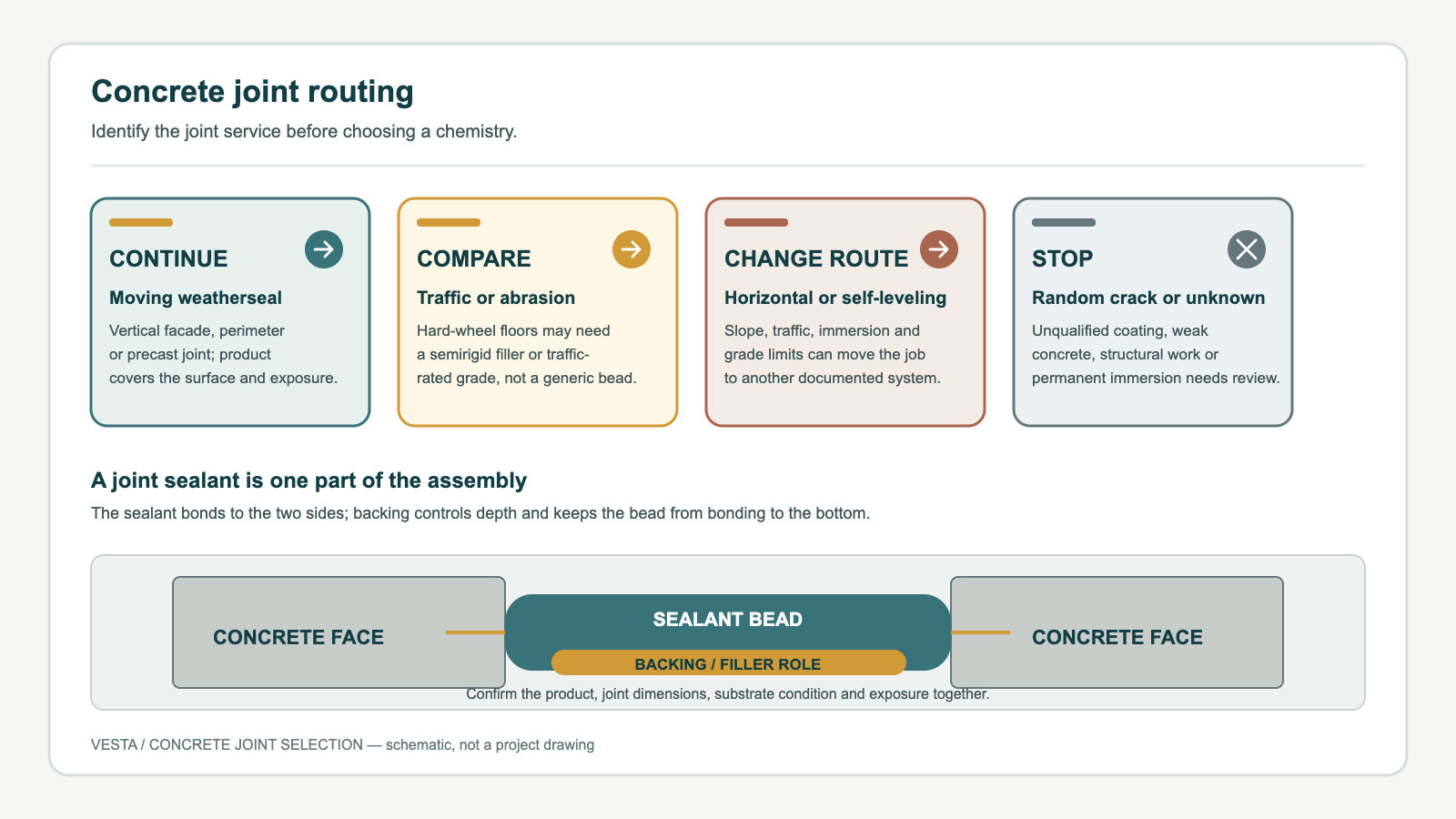

| If the joint is… | Start by… | Likely route |
|---|---|---|
| A vertical facade, perimeter or precast weatherseal | Confirm movement, exposure, both substrates and concrete condition | A compatible silicone may be a candidate |
| A hard-wheel control or construction joint | Check abrasion, wheel traffic and edge protection | Compare a semirigid filler or traffic-rated grade |
| A horizontal, sloped, immersed or self-leveling application | Check slope, flow, traffic and immersion limits | Change to a documented grade or another system |
| A random crack, weak surface or structural detail | Stop treating it as an ordinary joint | Obtain specialist review |
Can Silicone Sealant Be Used on Concrete Joints? The Short Answer
Often, yes. Manufacturer data such as Dow’s concrete-joint sealant data shows that some silicone products are specifically documented for concrete and masonry joints. That does not transfer the same adhesion or primerless use to every silicone.
The same applies to the words “concrete joint sealer,” “concrete joint caulk” and “caulk for concrete.” They describe how people search or buy, not a guaranteed chemistry or quality level. A concrete silicone caulk or silicone sealant for concrete still has to match the joint function, orientation, movement and exposure.
For a water-exposed joint, “waterproof caulking for concrete” should mean keeping water out of the joint—not waterproofing the entire slab, wall or drainage system. If the gap is a random crack, structural connection or hard-wheel floor joint, silicone may not be the right starting point.
First Identify the Joint—Not Every Gap in Concrete Is the Same
Classify the gap before comparing products. A designed joint has a movement or separation role; a random crack may indicate a different concrete or structural problem.
| Joint or gap | What it is expected to do | What you need to confirm |
|---|---|---|
| Expansion or isolation joint | Allow movement between elements while limiting water and debris entry | Movement range, width, orientation, backing and exposure |
| Control or saw-cut joint | Direct shrinkage or thermal movement along a planned line | Whether the joint is open, filled, trafficked or exposed to cleaning water |
| Construction joint | Seal the interface between concrete placements or elements | Concrete age, surface condition, movement and the second substrate |
| Precast panel joint | Weatherseal a designed interface between panels or frames | Panel finish, coatings, joint geometry and project sample testing |
| Concrete-to-metal, glass or render perimeter | Keep water out while different materials move differently | Both bond surfaces, finish, movement and compatibility |
| Random crack | May reflect shrinkage, settlement, structural movement or surface damage | Cause and responsibility before any sealant is selected |
That distinction is why concrete expansion joint sealant, expansion joint sealant for concrete and concrete control joint sealant should not be treated as interchangeable phrases. The joint’s job determines what the bead or filler is allowed to do.
Joint Sealant, Joint Filler and Backer Rod Do Different Jobs
An exposed elastomeric sealant forms the flexible weather or water-exclusion line. A compressible or semirigid filler can occupy a joint, support edges or transfer load. A backer rod controls sealant depth and helps prevent the sealant from bonding to the bottom of the joint.
| Component | Primary job | Why substituting it causes trouble |
|---|---|---|
| Joint sealant | Bond to the two sides and accommodate the movement allowed by the product | A sealant is not automatically a load-transfer or crack-repair material |
| Compressible or semirigid filler | Separate concrete elements, support edges or resist wheel damage in its documented service | A filler is not the exposed weatherseal bead by default |
| Backer rod or bond-breaker | Set depth and create two-sided rather than three-sided adhesion | Skipping it can change stress, geometry and the amount of sealant in the joint |
The phrase concrete expansion joint filler belongs to a different product category from a cartridge-applied joint sealant. Do not buy a filler because a search result calls it a “concrete joint sealer,” and do not expect a sealant bead to replace an engineered load-transfer system. For the backing and bond-breaker part of the assembly, use the separate backer-rod guide rather than treating this article as a full joint-design manual.
Where Silicone Works—and Where It Is Usually Not the First Choice
The main choice is a service-zone decision. Silicone can remain a strong candidate for vertical, exposed, moving weatherseals when the product covers the substrate and the project test is acceptable. The route changes when abrasion, traffic, immersion, grade or surface condition changes.
| Service condition | Silicone route | Alternative or stop |
|---|---|---|
| Vertical facade, perimeter or precast weatherseal | Consider a compatible, non-sag silicone with documented weather and movement scope | Test the actual finish and check the second substrate |
| Pedestrian plaza or lightly trafficked horizontal joint | Consider only a product whose exact documents cover the orientation and service | Compare a horizontal or traffic-rated grade |
| Hard-wheel warehouse, parking or forklift joint | Do not assume ordinary silicone expansion joint sealant will protect the edges | Compare a semirigid filler or traffic-rated system; ACI 302.1R discusses this routing |
| Vehicle traffic, high abrasion or impact | Generic exterior concrete caulk is not enough evidence | Use a product specifically documented for that service; traffic-grade manufacturer data shows the kinds of limits to check |
| Horizontal or sloped joint asking for self leveling concrete caulk | Confirm that the chosen grade is actually self-leveling and that slope limits are documented | Self-leveling is a grade property; choose another documented grade when the product data do not cover the slope |
| Permanent immersion or aggressive chemical exposure | Do not infer suitability from “waterproof” marketing language | Obtain exact immersion, chemical and project evidence |
| Random crack or moving structural detail | Do not use a joint-selection article as a crack or structural approval | Diagnose the cause and involve the responsible specialist |
Traffic is not a universal ban on elastomeric sealants. ACI also discusses elastomeric sealing in wet or hygienic areas and edge-strengthening details. The point is narrower: hard-wheel wear changes the edge-protection problem, so a generic best silicone caulk for concrete answer is not enough to specify a product.
Silicone vs Polyurethane, Hybrid and Acrylic on Concrete
Chemistry is a starting category, not the final approval. Compare the exact grade, not only the label on the cartridge.
| Chemistry route | Where it can make sense | What you still need to check |
|---|---|---|
| Silicone | UV and weather-exposed moving weatherseals, when the product covers the concrete or masonry surface | Substrate evidence, staining behavior, traffic limits, primer language and joint geometry |
| Polyurethane | Some traffic, horizontal or paintable systems documented for concrete | Exact movement, abrasion, moisture, slope, cure and chemical limits |
| Hybrid or MS polymer | A product-specific balance of adhesion, paintability and weathering | The current TDS; one hybrid cannot represent the whole family |
| Acrylic | Low-movement, often paintable interior or protected joints within its scope | Do not carry an interior acrylic route into an exposed moving joint |
For a concrete selection, polyurethane sealant for concrete joints may be the better search route when traffic, paintability or a particular horizontal grade controls. Silicone may be better when long-term weathering and UV exposure dominate. Paintable caulk for concrete also points toward a different trade-off: many silicones are not intended to be painted, while the exact polyurethane, hybrid or acrylic may be.
In our work, we have seen inexperienced installers use a low-cost silicone sealant on a concrete or stone facade without checking its staining behavior. An oily dark band appeared on both sides of the joint and affected the appearance of the wall. Based on the failure pattern we observed, white-oil migration was the likely cause. Cutting out the joint and resealing it with a different product resolved the problem. For concrete and stone facades, we therefore prefer a silicone sealant declared free of white oil or other mobile plasticizing oils, supported by product-specific non-staining evidence and tested on the actual finish before full application. We did not send the original batch for laboratory analysis, so we treat this as a field diagnosis rather than a lab-confirmed formulation finding.
Our experience points to the same risk: mobile components can migrate into porous concrete or stone and leave a visible stain even when the bead remains bonded. We therefore check the product’s non-staining position against the actual substrate and use a representative sample; the word “silicone” alone is not a clean-appearance guarantee.
What to Check on the TDS Before Buying a Concrete Joint Sealant
Before ordering a concrete joint sealant, ask for evidence in the same order that the joint will experience it:
| TDS question | Why it changes the choice | Evidence to request |
|---|---|---|
| Does the document name concrete, masonry, precast or the actual finish? | “Concrete” can hide laitance, repair mortar, coating or a weak surface | Current TDS and substrate list |
| Is the product non-sag, self-leveling or semi-self-leveling? | Grade controls vertical use, slope, tooling and horizontal flow | Exact grade instructions and slope limits |
| What movement and modulus information is documented? | Movement capacity is a product and joint-design question | TDS values with method, unit and conditions |
| Is traffic, abrasion, immersion or chemical exposure included? | Weather resistance alone does not approve a warehouse floor or tank | Application limits and project-specific confirmation |
| Does the product specify primer or a primerless route? | Primer depends on this sealant, this finish and this preparation | TDS, primer instructions and representative adhesion test |
| What joint width, depth and backing are allowed? | Geometry changes stress and sealant volume | Current joint-design section and project drawing |
| Is non-staining evidence available for porous concrete or stone? | A bond can succeed while the facade is visually damaged | Product-specific non-staining data and actual-finish sample |
ASTM C1193 provides general joint-design guidance, while ASTM C1521 addresses evaluation of installed weatherproofing joints and ASTM C794 addresses adhesion-in-peel for cured elastomeric sealants and sealant/primer combinations. Use each method for the question it actually answers; none replaces product selection and project testing.
Concrete Preparation, Primer and Joint Geometry Still Decide the Result
Concrete preparation means creating a sound, clean and dry bond face under the product instructions. Remove weak laitance, dust, oil, old sealant, curing compounds and incompatible coatings as the selected system requires. Do not turn a surface name into a universal solvent list or a universal CSP 3–5 rule; ICRI’s CSP language is primarily a preparation language for sealers, coatings, overlays and repair, so the selected product and project system should determine the preparation requirement.
Primer is equally product-specific. A concrete-specific silicone may say primer is not required on concrete or masonry, while another product may specify one for precast, EIFS or a particular finish. Use the primer decision guide for the primer question, then return to the product’s current TDS for the concrete finish.
Geometry matters as well. A 2:1 width-to-depth relationship is a common starting convention for many elastomeric joints, but the current product TDS, minimum and maximum depth, backing and movement govern. Confirm that the bead bonds to the two sides and not unintentionally to the bottom. A test joint should use the actual concrete or stone finish, the actual second substrate, the proposed preparation and enough cure time for the specified evaluation.
If a sample fails, record where it failed. Clean separation from the substrate points to adhesion or preparation. Failure that lifts a weak coating points to the coating-to-concrete interface. Cohesive tearing in the cured bead is a different observation. “Pass” or “fail” without the failure surface is not enough information for the next decision.
Can WR550 Be Considered for the Project?
Vesta WR550 Weather-Resistant Silicone is the Vesta weather-resistant silicone we would normally evaluate first for non-structural exterior moving weatherseals on concrete facade and precast joints. It can be used on concrete when the bond faces are clean, sound and properly prepared. WR550 is formulated without white oil, removing one common mobile-oil migration route and materially lowering the risk of dark staining on porous stone. The exact finish or coating still deserves an adhesion and stain sample before a visible installation.
For concrete-to-concrete, concrete-to-stone, concrete-to-render or concrete-to-metal, confirm the finish, coating, joint geometry and exposure, and run an adhesion or stain sample when required. WR550 is intended for non-structural exterior weathersealing, not traffic floors, self-leveling joints, permanent immersion or structural glazing.
Send the joint role, both substrates, finish or coating, orientation, movement, traffic or abrasion, width and depth, backing, exposure and representative samples. The Facade & Roofing application path provides the broader building-envelope context; the WR550 product page carries the current product information.
Questions to Answer Before Requesting a Sample or Quote
Send these details with a request for a sample or quotation:
- Is the joint an expansion, control, construction, precast, perimeter or random-crack condition?
- Is it vertical, horizontal, sloped or permanently immersed?
- Will it see pedestrians, vehicles, forklifts, abrasion, cleaning chemicals or fuel?
- What are the concrete, stone, render, metal or other bond surfaces, including coatings and curing compounds?
- What are the joint width, depth, backing and expected movement?
- Which product, standard or project specification is being considered?
- Can the actual finish and second substrate be supplied for a representative test?
Can silicone stick to concrete?
It can, when the exact product covers the prepared surface and the adhesion check is acceptable. “Concrete” alone is not enough: age, laitance, dust, coating, moisture and the second substrate can change the result.
What is the best silicone caulk for concrete?
There is no universal best cartridge. Start with the joint function and service zone, then compare a documented concrete-compatible silicone, traffic-rated product, semirigid filler or another chemistry. The best route is the one supported by the current document and representative project materials.
Is silicone sealant waterproof for concrete?
It can help exclude water at a properly designed and prepared joint. It does not waterproof the whole wall or slab, replace flashing or drainage, or make an unqualified crack or immersed assembly acceptable.
For a product and sample discussion, send your concrete joint details. Include the application, both substrates, finish, dimensions, exposure and the document or standard you need checked. We can help you compare the relevant product documents, primer requirements and sample-testing questions before you order.
