If you are comparing polyurethane sealant vs silicone for a construction joint, start with the job the cured bead must perform. Polyurethane is commonly the first chemistry to review when the joint must accept a defined coating, bond to prepared concrete or masonry, or withstand a tough, protected or traffic-related service condition. Silicone is commonly the first chemistry to review for exposed exterior weatherseals, glass and facade perimeters, windows and doors, and other joints where UV, rain and repeated movement matter.
The short answer is not “PU is stronger” or “silicone lasts longer.” For a construction joint, compare paintability, both substrates, exposure, movement, joint geometry, finish sequence and the exact product document. The chemistry name narrows the search; it does not approve the installation by itself.
Silicone vs polyurethane sealant: quick comparison for construction joints
| Project priority | Chemistry to review first | Why it is often considered first | Check before approval |
|---|---|---|---|
| Paintable exterior or interior joint | Often polyurethane | Some construction PU products are designed for a named coating or recoat sequence after cure. | Exact paint family, cure state, preparation and compatibility. |
| Concrete, masonry or other mineral substrate | Often polyurethane | Many construction PU sealants are designed around porous-surface adhesion, movement and, in some systems, paintability. | Both bond faces, moisture, primer requirements and the current product document. |
| Exterior UV, rain and temperature cycling | Often silicone | Building silicones commonly hold an elastic weatherseal role through sunlight, rain, ozone and temperature change. | Listed substrates, movement basis, joint design and the exact weathering evidence. |
| Glass, aluminum, window or facade perimeter | Often silicone | Silicone is widely used for non-structural glazing and perimeter weatherseals where exposure and movement are central. | Weatherseal versus structural-glazing role, compatibility and project approval. |
| Abrasion, traffic or protected industrial service | Product-specific; often review PU first | Some PU systems are selected for tougher wear or chemical conditions. | The exact abrasion, fuel, chemical or traffic evidence; do not infer it from “polyurethane.” |
| High movement or dissimilar-material joint | Product- and geometry-specific | Silicone and PU systems can both be suitable, but movement class and bond-line stress control the choice. | Joint width/depth, two-sided adhesion, backing, movement class and test basis. |
| Windshield or structural glass bond | Qualified specialist system | These are safety- or load-bearing applications, not ordinary caulking. | Vehicle/glass or engineered system, installation method, retention and approval requirements. |
How composition and cure chemistry change the result
The usual pros-and-cons list becomes more useful when you can see where the differences come from. The simplified chain is polymer and formulation → cure reaction → cured surface and mechanical behavior. It tells you what to investigate first; it still does not replace the current TDS, SDS or a check on the actual substrates.
| Comparison layer | Typical one-part silicone sealant | Conventional one-part polyurethane sealant | What it changes on site |
|---|---|---|---|
| Polymer and formulation | A reactive polydimethylsiloxane or other siloxane backbone, normally combined with fillers, crosslinker, catalyst, adhesion promoter, pigment and plasticizer. | An isocyanate-functional polyurethane prepolymer, originally built from polyol and diisocyanate chemistry, plus the product’s own fillers, catalyst, plasticizer and adhesion package. | Two cartridges with the same chemistry label can still have different modulus, hardness, adhesion, staining, colour stability and movement capability. |
| One-part cure trigger | Atmospheric moisture starts hydrolysis and condensation reactions that form a crosslinked silicone-rubber network. Acetoxy, alkoxy and oxime systems use different cure packages. | Atmospheric moisture reacts with isocyanate groups on the prepolymer and crosslinks the polymer chains into an elastomer. | Skin time is not full cure. Temperature, available humidity, bead depth and exposed surface area can all affect cure progression. |
| Common formulation advantage | The siloxane backbone gives many silicone sealants strong UV and temperature stability while retaining flexibility. | PU chemistry can be formulated toward tough cohesive strength, tear or abrasion resistance, adhesion and a compatible paint sequence. | Silicone is often investigated first for exposed weatherseals; PU is often investigated first where painting, wear or a tougher protected joint is central. |
| Common formulation tradeoff | Many ordinary coatings do not wet or bond reliably to cured silicone, and the cure package can change odour, metal compatibility and cure speed. | Cure and early handling are sensitive to product design and ambient conditions; UV, colour stability and paint compatibility vary substantially by formulation. | Check the actual cure family, coating system, exposure and handling instructions instead of relying on “silicone” or “PU” alone. |
| Other cure systems | Two-part and heat- or UV-activated silicones need their own cure data rather than the assumptions used for a one-part moisture-cure building sealant. | Two-part, accelerated and booster-assisted PU systems may be less dependent on ambient humidity than a conventional one-part cartridge. | Do not copy skin time, full-cure time or application rules from one cure system to another. |
Silicone: a siloxane network formed by moisture cure
Typical silicone sealants use a siloxane backbone built around repeating Si–O–Si bonds. Fillers reinforce the soft polymer; crosslinkers and catalysts control network formation; adhesion promoters help the sealant bond to selected surfaces; and plasticizers and pigments adjust application and cured properties. Changing any of those parts can change modulus, extrusion, cure speed, adhesion, staining and colour stability, even when both products are sold as silicone.
In a common one-part condensation-cure silicone, moisture from the air activates the reactive polymer and crosslinker. A skin forms at the exposed surface and cure then advances inward. This explains why a bead may feel dry on top while the centre is still curing, and why deep or confined joints need more caution than a thin exposed bead. Acetoxy, alkoxy and oxime packages are also not interchangeable: they can differ in odour, cure speed and compatibility with sensitive metals or other materials. For the timing distinction between surface dry and full cure, see our silicone cure-time guide.
The cured siloxane network helps explain silicone’s usual weatherseal advantage: many formulations retain flexibility and stable properties through UV exposure and temperature change. The tradeoff is the cured surface. Ordinary architectural paints often do not adhere reliably, so a project that must be painted may need a different sealant chemistry or a specifically tested coating system.
Polyurethane: a reactive prepolymer that crosslinks into an elastomer
A conventional one-part polyurethane sealant starts with an isocyanate-functional prepolymer. After application, water molecules from atmospheric moisture react with those groups and create crosslinks between polymer chains. The liquid or paste becomes an elastic solid, but the rate depends on the exact formulation and conditions. Lower temperature or less available moisture can slow some products, while bead geometry and the exposed surface affect how quickly cure reaches the centre.
Polyurethane formulation is highly adjustable. Exact products can be designed for low-modulus movement, higher cohesive strength, tear or abrasion resistance, adhesion to prepared mineral surfaces, or a defined paint sequence. That tunability is a practical advantage, but it is also why a statement such as “PU is stronger and paintable” is too broad. The TDS must identify the relevant movement, hardness, paint, exposure and substrate evidence, and the SDS controls handling of the uncured product.
There is another label trap: some products sold as hybrid polyurethane, PU hybrid or STP use silane-terminated polymers and may be isocyanate-free. They are moisture curing, but they are not the same reaction system as conventional isocyanate-functional PU. Treat the chemical base and cure mechanism in the current TDS/SDS as separate selection fields; a hybrid name does not automatically combine every advantage of polyurethane and silicone.
Where polyurethane sealant is commonly the better starting point
Polyurethane is not one performance class. A construction joint sealant, automotive body seam sealer and automotive windshield adhesive may all be called polyurethane while having different modulus, cure, adhesion, paint and safety requirements.
Concrete, masonry and paintable joints
Polyurethane is often a sensible first chemistry to review for concrete, masonry, mortar and other prepared mineral surfaces. That starting point becomes stronger when the bead must accept a compatible coating or recoat sequence. Some PU products are documented for named water-, oil- or rubber-based paint families and are intended to move with the joint after installation.
Paintability is a compatibility question, not a quality score. The coating must wet and bond to the cured sealant surface. Confirm the exact PU, paint chemistry, cure state, preparation and application timing before the bead is installed. “Paintable polyurethane” is a useful search starting point, not a substitute for the product document.
The substrate still matters. New concrete, cured concrete, repair mortar, painted concrete and contaminated concrete are different bond conditions. Do not reduce the choice to “concrete equals PU”: a suitable silicone may also be documented for concrete or masonry weathersealing.
Tougher or protected service conditions
Some polyurethane systems are selected for flexible sealing in body seams, protected industrial joints or applications where wear, tear, fuel or chemical resistance is part of the specification. Those benefits belong to the exact formulation and test conditions. Tensile strength, elongation, modulus, abrasion resistance and cyclic movement answer different questions, so compare the method, specimen, cure condition, unit and product model together.
Where silicone sealant is commonly the better starting point
Silicone is not an indoor-only material. Many building silicone formulations are positioned for exterior glazing, windows, doors, facades and other non-structural weatherseals because the cured bead remains flexible through UV exposure, rain and temperature cycling.
Exterior weatherseals, windows and facades
Silicone is usually the better starting point for a non-structural exterior perimeter joint when the product supports the substrates, movement and exposure. Typical roles include aluminum window perimeters, glass weatherseals, facade interfaces, roofing details and curtain-wall perimeter joints.
“Silicone for glass” is still too broad. Conventional glazing, perimeter weathersealing and structural glazing are different jobs. A product that seals a window perimeter is not automatically carrying glass load; structural glazing needs the correct product, geometry, compatibility work, engineering review and project approval.
UV, weathering and movement
If long outdoor exposure is the first concern, silicone is normally the first chemistry to investigate. That does not make every silicone superior to every PU. Some PU products are documented for outdoor weathering, and any sealant can be limited by substrate, finish, staining, cure, joint design or the defined project role. Compare the exposure and movement evidence for the exact product.

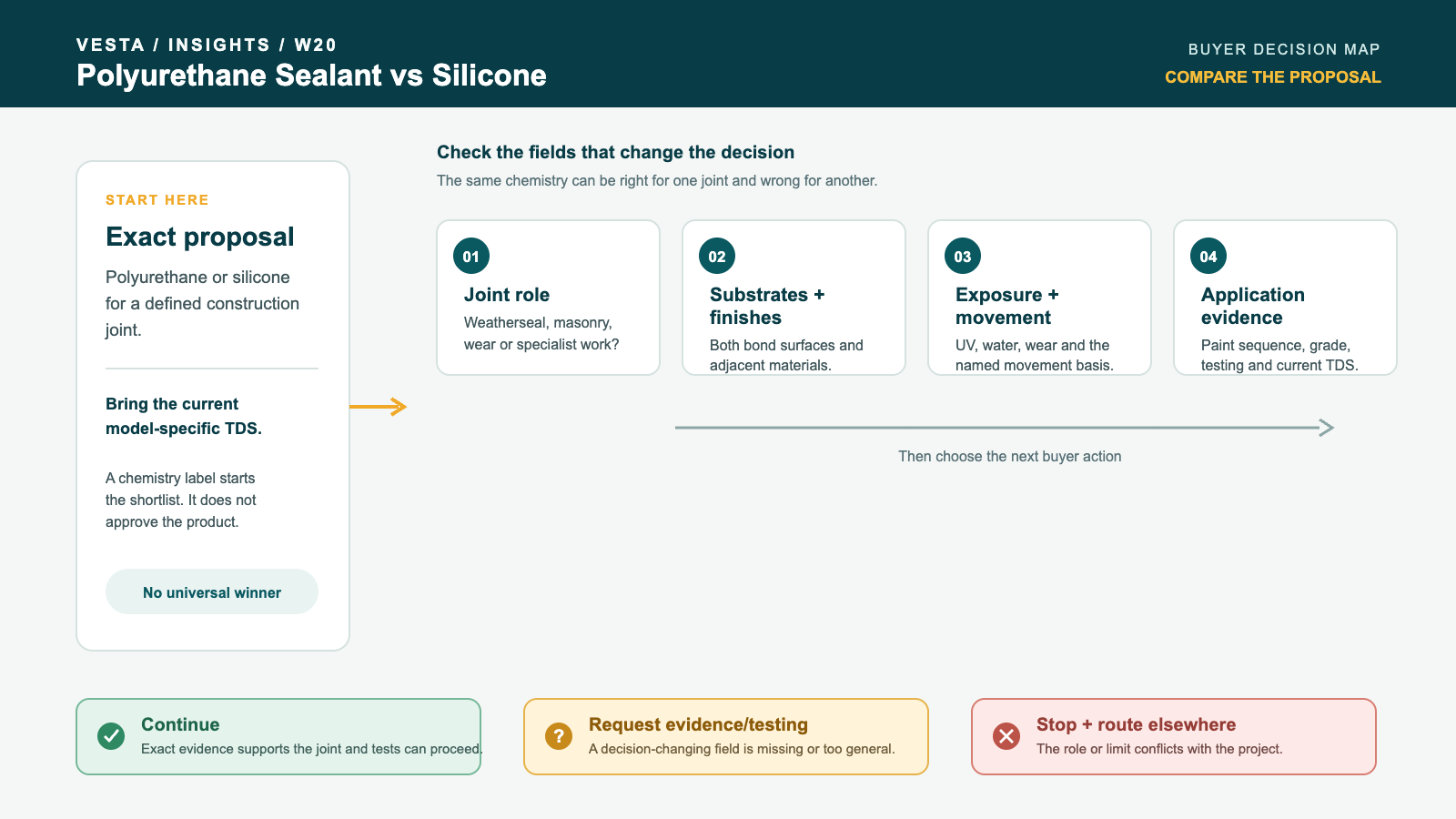

The checks that decide the final answer
Once the construction role is clear, compare the proposal against the variables that control performance:
| Check | Why it changes the choice | What to record |
|---|---|---|
| Joint role | Weatherseal, paintable finish, movement joint and structural or safety-critical bond are different jobs. | The role named in the current TDS and project specification. |
| Substrates and finishes | Concrete, masonry, glass, coated aluminum, wood, membranes and gaskets present different bond surfaces. | Both bond faces, coating, preparation, primer and adjacent materials. |
| Movement and geometry | Flexibility alone does not qualify a sealant for a width, depth, load or movement cycle. | Joint dimensions, two-sided adhesion, backing, movement class and test method. |
| Exposure | UV, rain, water, immersion, temperature cycling, abrasion, traffic and fuel are not interchangeable. | The exposure covered by the exact product and project location. |
| Paint and recoat | A cured bead may need to accept a specific coating without losing adhesion. | Paint family, cure state, preparation and compatibility evidence. |
| Chemical base, cure system and next operation | Conventional 1K PU, hybrid STP, 2K PU and different silicone cure packages do not share one cure profile. “Fast cure” may mean tack-free, toolable, paint-ready, water-ready, fully cured or drive-away. | Chemical base, cure mechanism, exact definition, temperature, humidity, thickness and waiting time. |
For backing, joint depth and two-sided versus three-sided adhesion, use the separate guide to backer rod and joint geometry. Even a suitable chemistry can fail when the joint is dirty, too deep, poorly shaped or bonded on three sides.
Specialist cases that should stay separate
Some searches use the same chemistry words but require a different system:
- Automotive body seams: use the body-shop product, paint sequence, corrosion system and cure instructions for that repair.
- Automotive windshields: a windshield needs a qualified adhesive system for the vehicle and glass, including preparation, retention, cure and drive-away requirements. In our experience, cost-driven proposals sometimes substitute general silicone for a qualified windshield urethane system. Treat that as a system mismatch and identify the responsible automotive procedure.
- Bathrooms and kitchens: selected sanitary silicones can be suitable for humid joints, but cure type, substrate compatibility and water-ready time remain product-specific.
- Aquariums or permanent immersion: use only a product whose current documents cover that aquatic or immersion role. “100% silicone” alone is not an aquarium approval.
Common comparison mistakes
- Choosing by chemistry label alone. “Polyurethane” and “silicone” each cover multiple formulations and applications.
- Assuming every PU is paintable or every silicone is unpaintable. Check the exact coating system and cured surface.
- Treating a weatherseal as structural glazing. Perimeter sealing and glass load transfer need different approvals.
- Comparing strength numbers without test conditions. Record method, specimen, cure condition, unit, model and scope.
- Diagnosing the original chemistry from yellowing or cracking. Appearance alone cannot identify the material or the cause; inspect the joint, preparation, geometry and exposure.
Where Vesta products fit today
For compatible non-structural exterior weatherseals, WR550 Weather-Resistant Silicone is one documented Vesta option. Its current TDS identifies a one-component, non-sag weather-resistant silicone for compatible building-envelope weathersealing and records product-specific movement, sag and weather-resistance evidence. It is not a substitute for polyurethane, structural glazing or every exterior finish.
Use the Windows & Doors and Roofing & Facade guides with the exact joint and product document. For dry interior gaps that must be painted, CR210 Acrylic Sealant is a separate paintable option; it is not a high-movement exterior sealant or a substitute for a qualified construction or automotive system.
Vesta does not currently publish a polyurethane product page. If you are evaluating a polyurethane proposal, send the exact model and current TDS so the comparison stays at product level. When a Vesta PU model is approved and published later, this article can link to that product page and its documented applications; no unsupported product link is added here.
What to send for a first application check
Send these details together:
- exact product name and model;
- current TDS revision, issue date and market;
- joint role, orientation and whether it is non-structural;
- both substrates, exact finishes and any primer;
- UV, rain/water, temperature, immersion, abrasion or traffic exposure;
- required movement classification or project specification;
- joint dimensions, backing and adjacent gaskets, membranes, coatings or other contact materials;
- paint or recoat system, if any;
- destination market;
- whether you need a sample, document review, adhesion/compatibility test, mockup or qualified specialist installation route.
These inputs separate a product that needs more evidence from one that is being asked to do the wrong job.
